Heated Seat Components
The driver and passenger heated seats consist of the following components:
- Left heated seat switch
- Right heated seat switch
- HVAC control module
- Seat memory control module or seat heating control module
- Driver seat cushion heating element
- Driver seat back heating element
- Driver seat cushion temperature sensor
- Passenger seat cushion heating element
- Passenger seat back heating element
- Passenger seat cushion temperature sensor
NOTE:

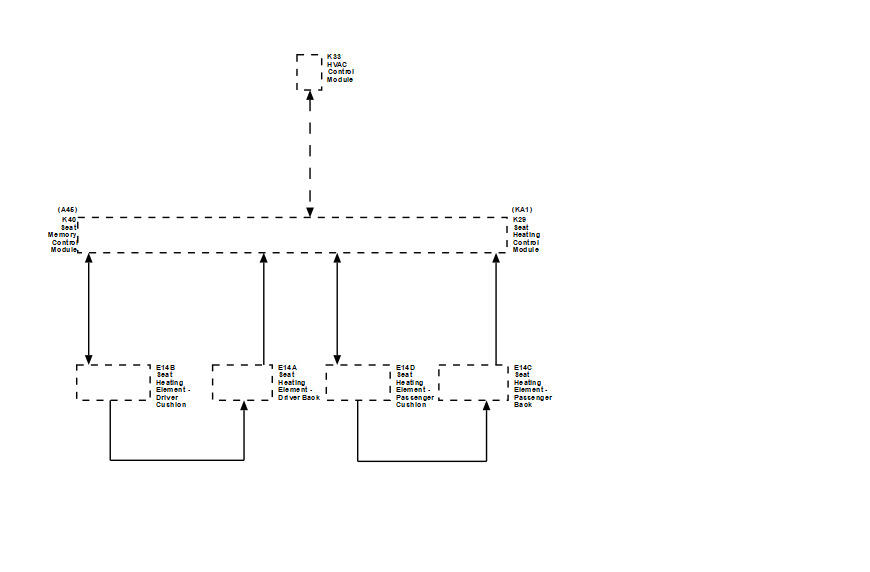

The passenger seat block diagram is identical to the driver seat.
| Callout | Component Name |
|---|---|
| A45 | MEMORY: SEAT ADJUSTER, MIRROR, POWER, DRIVER, PERSONALIZATION |
| KA1 | HEATER SEAT FRT: DRVR and PASS |
| K29 | K29 Seat Heating Control Module |
| E14C | E14C Seat Heating Element - Passenger Back |
| E14D | E14D Seat Heating Element - Passenger Cushion |
| E14A | E14A Seat Heating Element - Driver Back |
| E14B | E14B Seat Heating Element - Driver Cushion |
| K33 | K33 HVAC Control Module |
| K40 | K40 Seat Memory Control Module |
