Driver or Passenger Seat Inner Recliner Finish Cover Replacement (Driver)

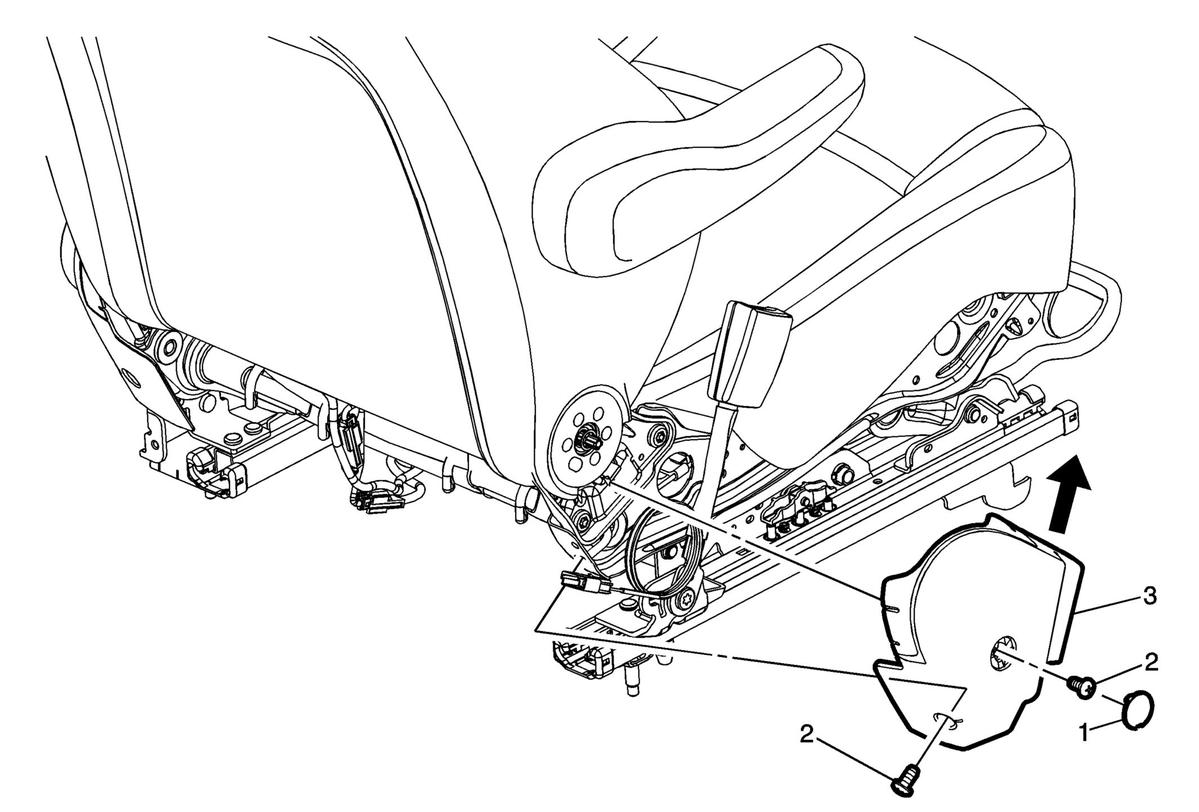

Callout	Component Name
1	Driver or Passenger Seat Inner Recliner Finish Cover Cap Procedure  Use a flat-bladed tool to release the cap from the recliner cover.
2	Driver or Passenger Seat Inner Recliner Finish Cover Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  8 N.m (71 lb in)
3	Driver or Passenger Seat Inner Recliner Finish Cover Procedure  Firmly grasp the upper area of the finish cover that folds over the seat cushion frame, pull upward and then outboard to disengage the finish cover from the seat cushion frame.
