Home >> Buick >> 2018 >> Encore Preferred, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Seats >> Power Seat System >> Schematic Wiring Diagrams >> Driver Seat Wiring Schematics (Chevrolet) >> 6-Way Power Driver Seat (Chevrolet with AG9)

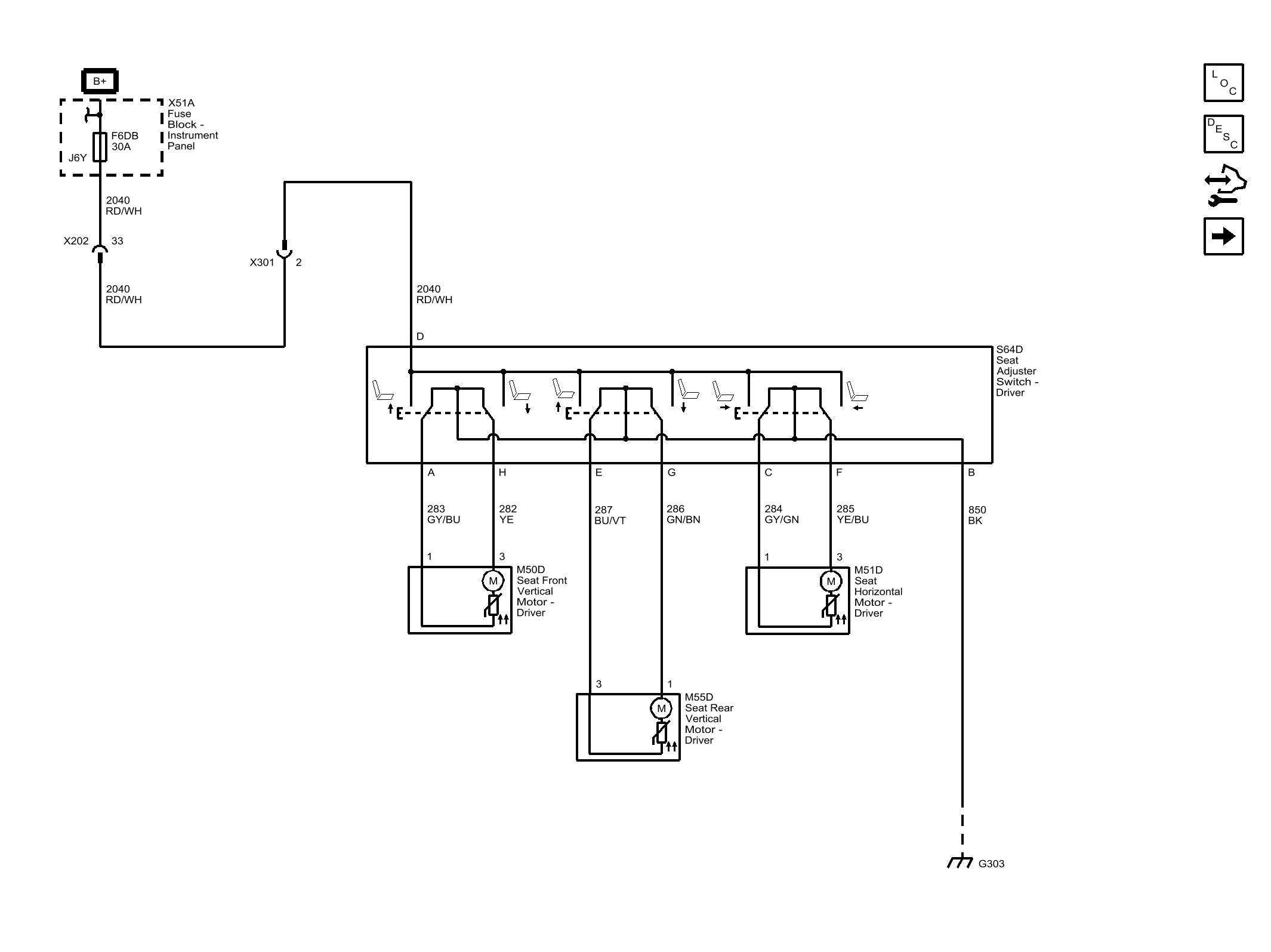

6-Way Power Driver Seat (Chevrolet with AG9)

GM4709268
