Steering Wheel Pad Accessory Wiring Harness Replacement (Buick, Chevrolet, With Steering Wheel Switches)

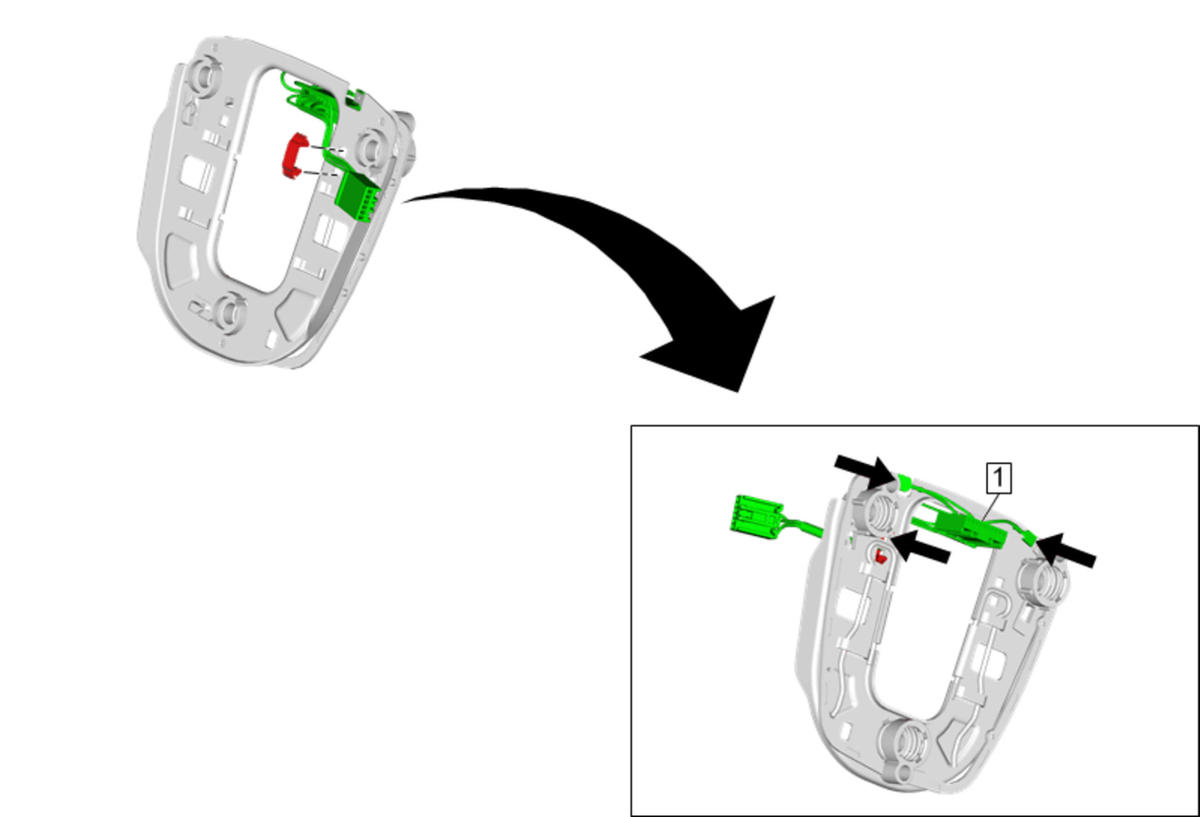

GM4364028
Callout Component Name
Preliminary Procedure
Steering Wheel Horn Contact Replacement (Buick)Steering Wheel Horn Contact Replacement (Chevrolet)
1 Steering Wheel Pad Accessory Wiring Harness

Procedure

  1. Remove the wiring harness retainer from the steering wheel horn contact.
  2. Disconnect the electrical connectors.
