Daytime Running and Parking/Position Lamp Bulb Replacement (Right Side with LUV and SBM)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Inlet Duct Replacement |
|

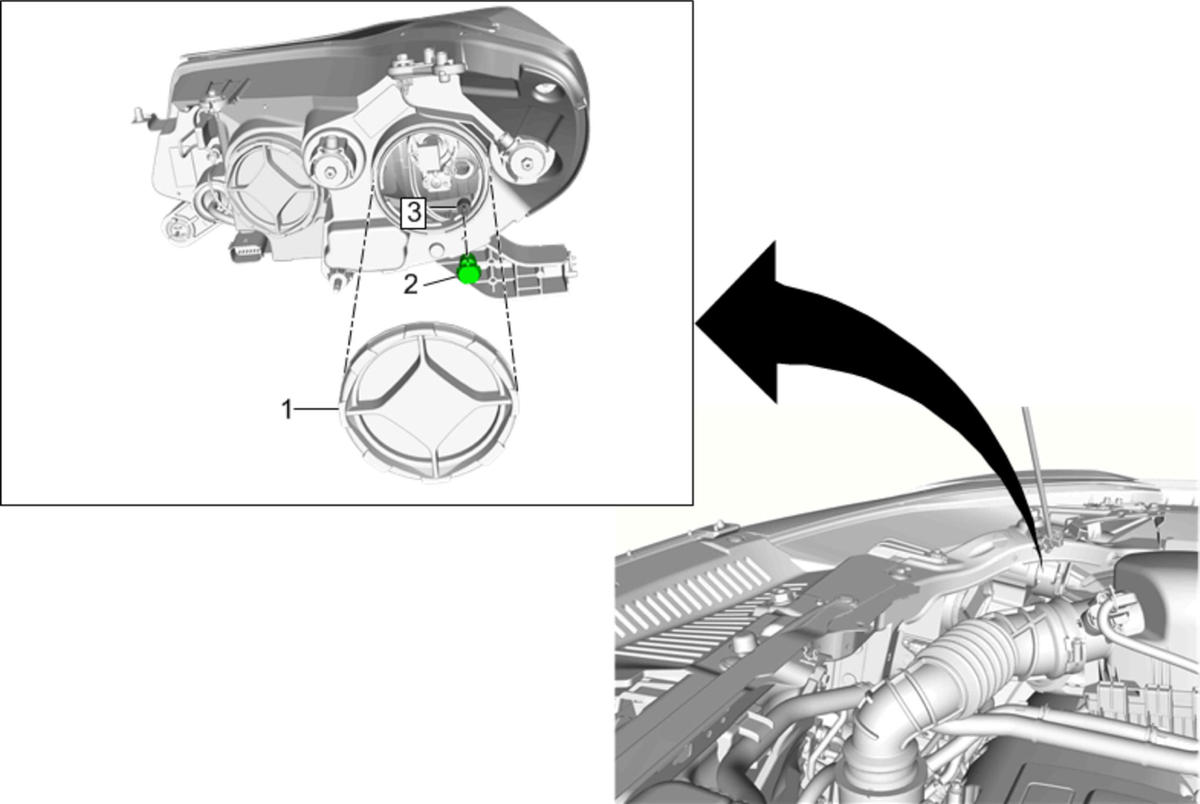

| 1 | Headlamp Bulb Access Cover Procedure Rotate the bulb access cover counterclockwise to remove it from the lamp housing. |
| 2 | Daytime Running and Parking/Position Lamp Bulb Socket Procedure Pull the bulb socket from the headlamp. |
| 3 | Daytime Running and Parking/Position Lamp Bulb Procedure Pull the bulb from the bulb socket. |
