Transmission Electronic Control Replacement

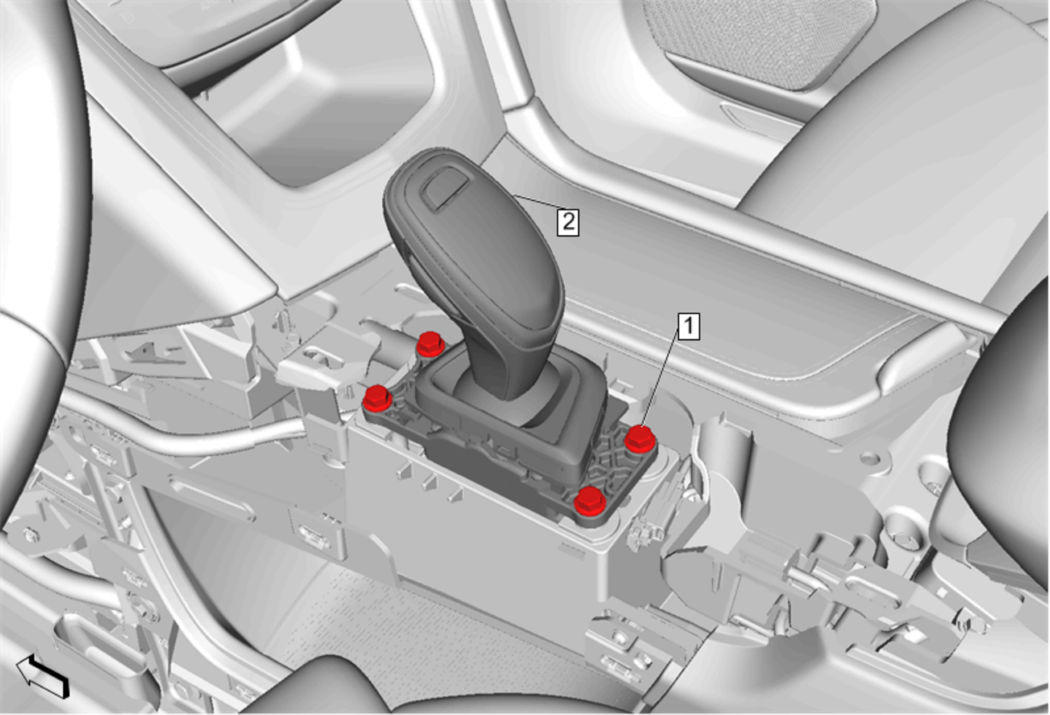

GM4284982
Callout Component Name
Preliminary Procedure
Remove the front floor console trim plate. Front Floor Console Trim Plate Replacement .
1 Electronic Transmission Range Selection Shift Control Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Electronic Transmission Range Selection Shift Control
Procedure
Disconnect the transmission control electrical connector.
