X21 Manual Service Disconnect Receptacle X1
|
|

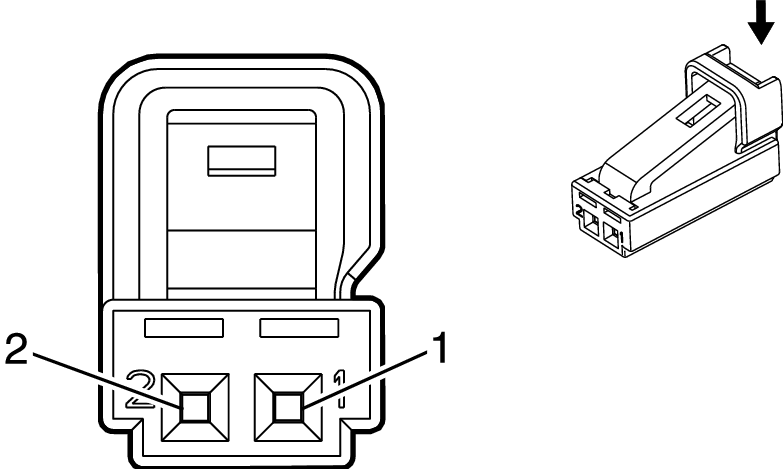

Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 10865735
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT |
5087 |
High Voltage Interlock Loop Signal 1 |
I |
- |
| 2 |
0.5 |
BK/BN |
5088 |
High Voltage Interlock Loop Low Reference 1 |
I |
- |
