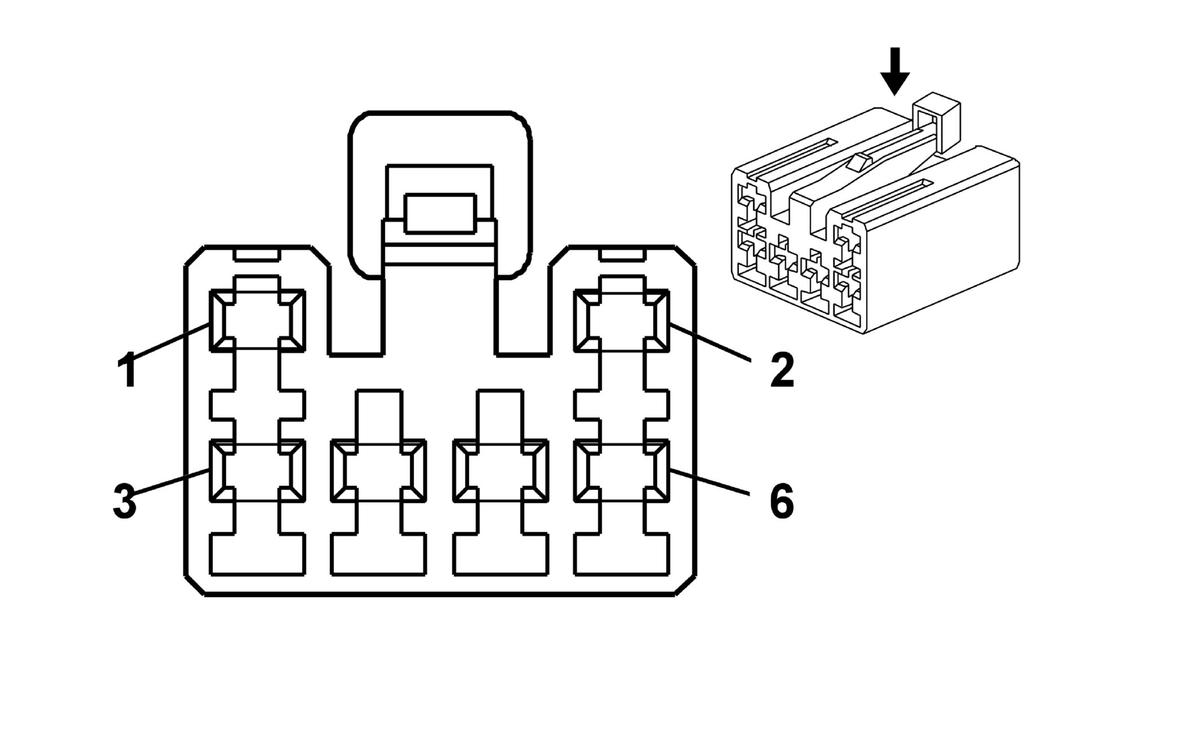

S20LR Folding Seat Control Switch - Left Rear
|
|
Connector Part Information
- Harness Type: Left Rear Door Trim
- OEM Connector: 13528383
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 090 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-18 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD/WH |
5740 |
Battery Positive Voltage |
I |
- |
| 2 |
0.5 |
BK |
850 |
Ground |
I |
- |
| 3 |
0.5 |
BU/YE |
977 |
- |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.5 |
GN/YE |
976 |
- |
I |
- |
