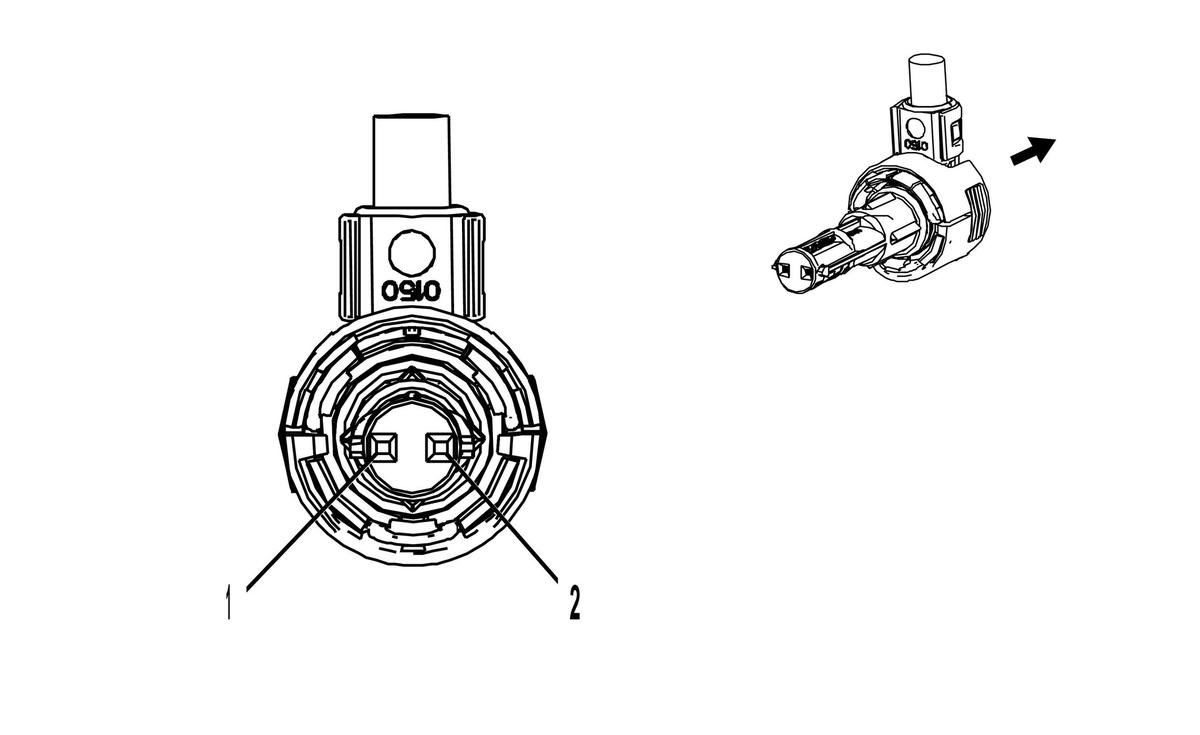

Q37LF Shock Absorber Actuator - Left Front
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 15517110
- Service Connector: 19330675
- Description: 2-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BN/WH |
1107 |
Left Front Damping Servo Control |
I |
- |
| 2 |
0.75 |
GY/BU |
1113 |
Left Front Damping Servo Control |
I |
- |
