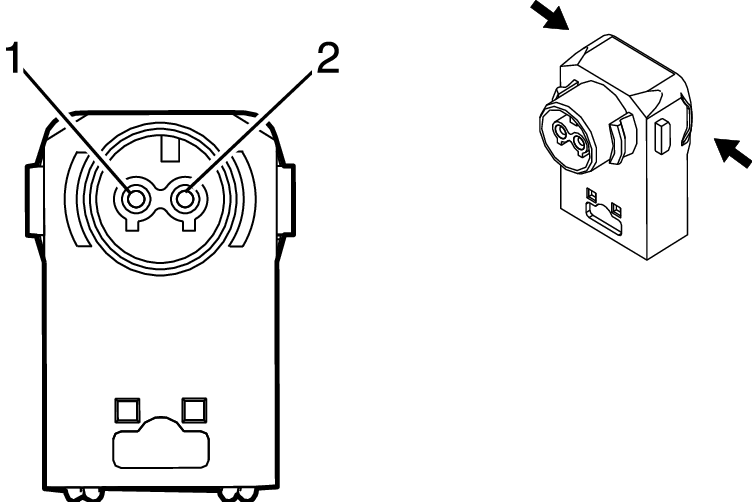

F113D Seat Belt Anchor Pretensioner - Driver (CZ2)
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13593937
- Service Connector: 19354074
- Description: 2-Way F 1.0 MAC Series
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/YE |
3481 |
Driver Seat Belt Anchor Pretensioner High Control |
I |
- |
| 2 |
0.5 |
VT/OG |
3482 |
Driver Seat Belt Anchor Pretensioner Low Control |
I |
- |
