C4D Hybrid/EV Battery Section 4 X1 (HP4)
|
|

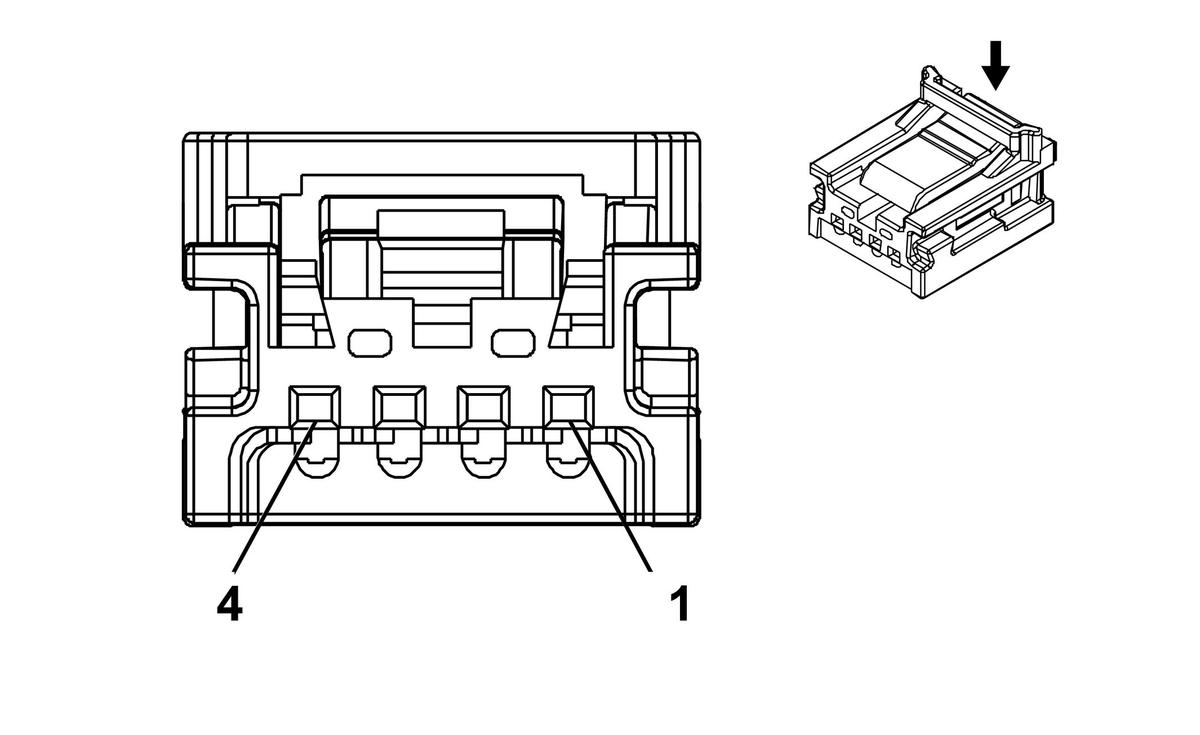

Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 33228285
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F Mini 50 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
EL-35616-58 (BK) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU |
1626 |
Battery Cell Sensing Serial Data (-) 2 |
I |
- |
| 2 |
0.35 |
WH/BU |
1625 |
Battery Cell Sensing Serial Data (+) 2 |
I |
- |
| 3 |
0.35 |
WH |
1511 |
Battery Cell Sensing Serial Data (-) 1 |
I |
- |
| 4 |
0.35 |
WH/BN |
1510 |
Battery Cell Sensing Serial Data (+) 1 |
I |
- |
