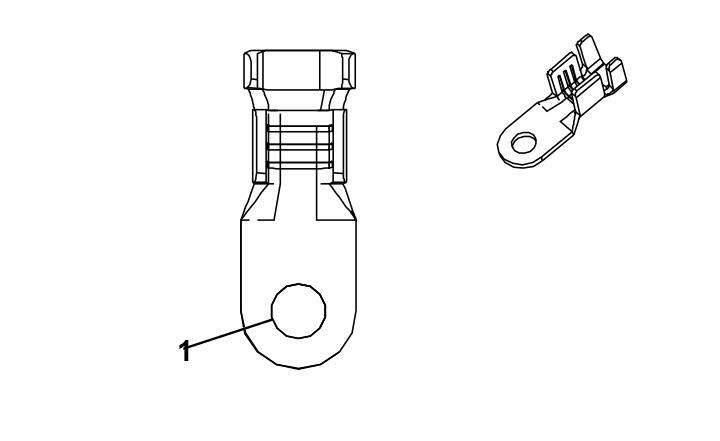

C1B Battery - Auxiliary (CZ2 -)
|
|
Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 13295757
- Service Connector: Service by Harness - See Part Catalog
- Description: 1-Way Battery Cable
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Pending |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
35 |
BK |
150 |
Ground |
I |
- |
