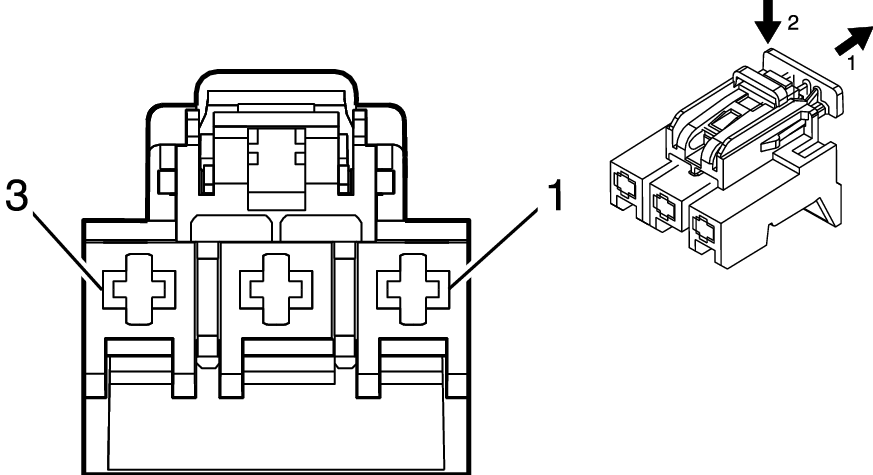

A28 Hybrid/EV Battery Contactor Assembly X10 (HP5)
|
|
Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 15530997
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 2.8 MCP Series (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
5 |
OG |
3973 |
High Voltage Battery 5 (-) |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
5 |
OG |
3974 |
High Voltage Battery 5 (+) |
I |
- |
