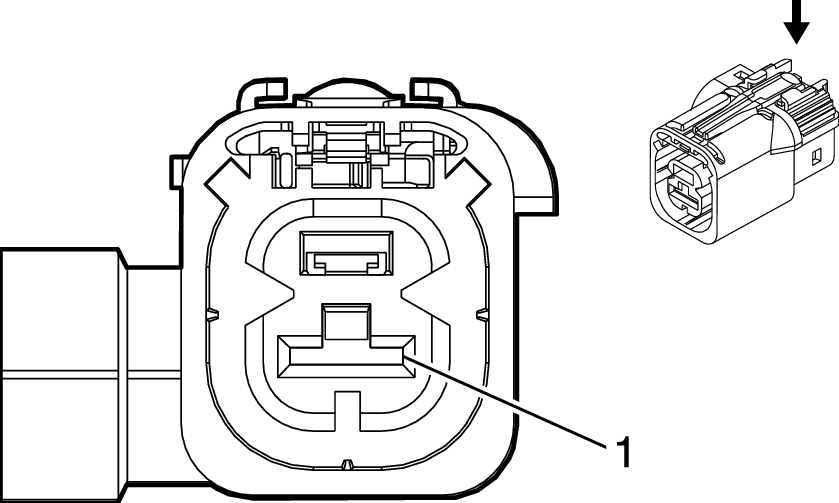

A28 Hybrid/EV Battery Contactor Assembly X1 (HP4)
|
|
Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 33119077
- Service Connector: Service by Harness - See Part Catalog
- Description: 1-Way F 6.3 Series (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
12 |
OG |
5084 |
High Voltage Battery (+) |
I |
- |
