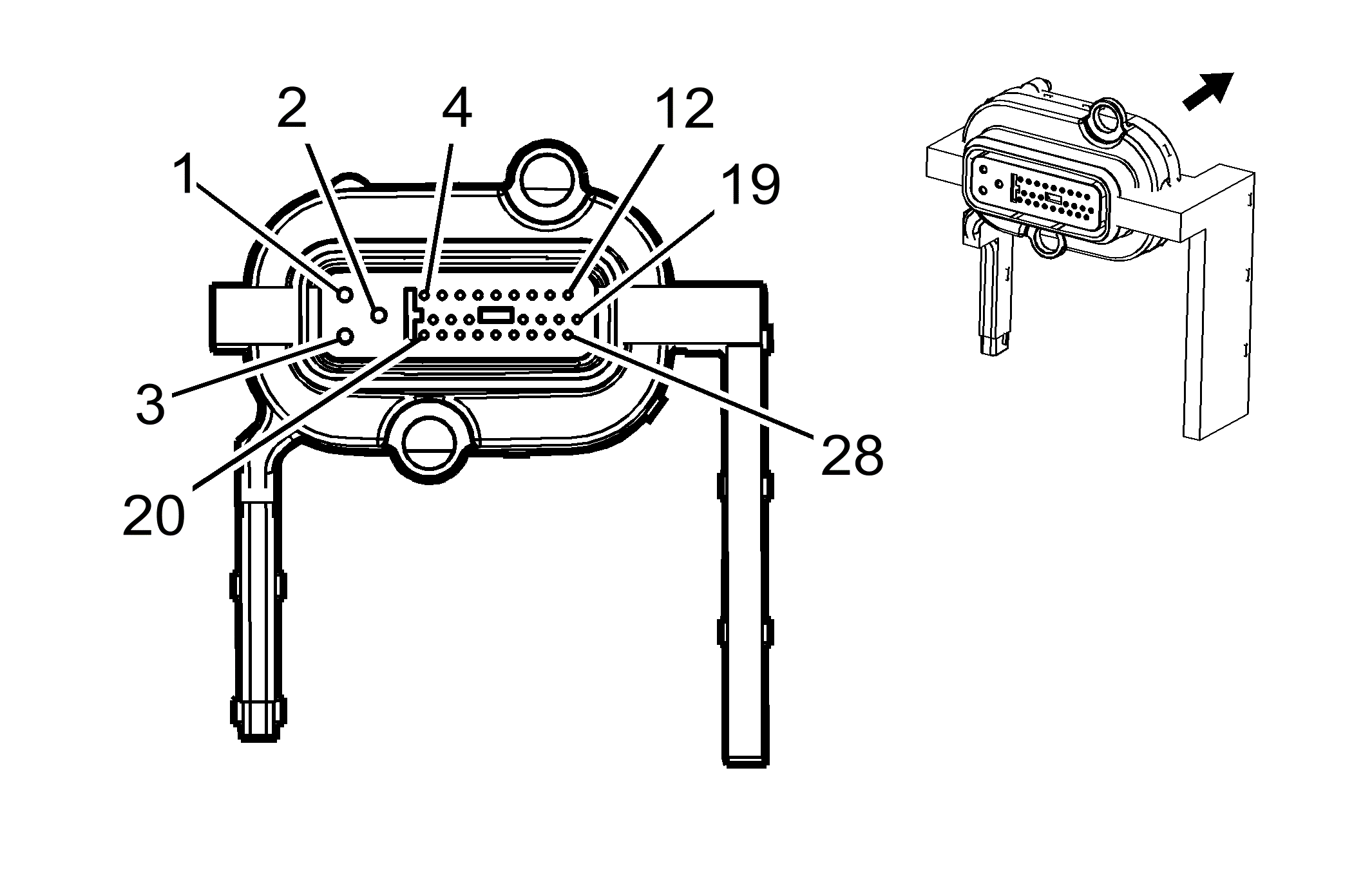

K71 Transmission Control Module X2 (MO5)

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	Pending	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	3	PU	3772	MGU Phase U Control	I	-
2	3	GY	3771	MGU Phase V Control	I	-
3	3	BK	3770	MGU Phase W Control	I	-
4	0.5	RD	6388	Transmission High Side Driver 2 Signal	I	-
5	0.5	L-GN/BK	6401	Clutch B Control	I	-
6	0.5	PU/WH	6400	Clutch A Control	I	-
7	0.5	RD	4170	Transmission Position Sensor B 9V Reference	I	-
8	0.5	BN/WH	9001	Shift Fork 2 Position Signal	I	-
9	0.5	D-BU/WH	9002	Input Shaft - Even Gears Speed Signal	I	-
10	0.5	PK	6962	Transmission Control Module Clutch Solenoid Control A	I	-
11	0.5	D-BU	1530	Transmission Mainline Pressure Solenoid Control	I	-
12	0.5	RD/BK	4162	Transmission Pressure Sensor A 5V Reference	I	-
13	0.5	BK	1792	Low Reference	I	-
14	0.5	TN	9000	Shift Fork 3 Position Signal	I	-
15	0.5	OG	9003	Shift Fork 1 Position Signal	I	-
16	0.5	WH	6402	Clutch C Control	I	-
17	0.5	BN	6403	Clutch D Control	I	-
18	-	-	-	Not Occupied	-	-
19	0.5	L-BU	4165	Transmission Pressure Sensor A Low Reference	I	-
20	0.5	YE	6387	Transmission High Side Driver 1 Signal Driver	I	-
21	0.5	BK	9004	Shift Fork 4 Position Signal	I	-
22	0.5	L-GN	9005	Input Shaft - Odd Gears Speed Signal	I	-
23	0.5	YE/BK	4171	Transmission Position Sensor A 9V Reference	I	-
24	0.5	D-GN/WH	4509	Transmission Clutch F Control	I	-
25	0.5	GY/WH	6404	Clutch E Control	I	-
26	0.5	GY	585	Transmission Oil Temperature Sensor Signal	I	-
27	0.5	D-GN	4508	Transmission Clutch G Control	I	-
28	0.5	PU	4507	Transmission Clutch H Control	I	-
