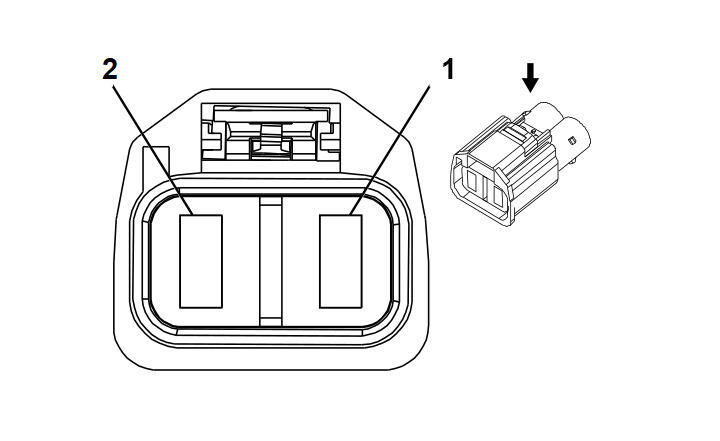

K43 Power Steering Control Module X1

Connector Part Information Harness Type: Engine OEM Connector: 13741946 Service Connector: Service by Harness - See Part Catalog Description: 2-Way F 9.5 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-42 (RD)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	16 10	RD/GN RD/GN	242 242	Battery Positive Voltage Battery Positive Voltage	I I	LHN/(LFV/LGX) LTG/LKN
2	10	BK	350	Ground	I	-
