Ambient Air Temperature Gauge Sensor Replacement

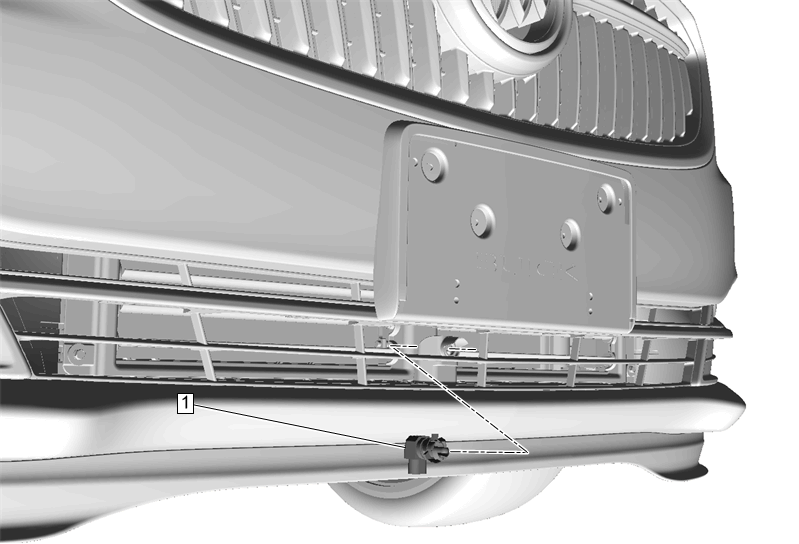

Fig 1: Ambient Air Temperature Gauge Sensor
GM4485039Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Ambient Air Temperature Gauge Sensor

Procedure

  1. Squeeze the ambient air temperature gauge sensor retaining tabs to remove from the radiator air lower deflector.
  2. Disconnect the electrical connector.
