Rear Compartment Side Trim Replacement - Right Side (With LGX)

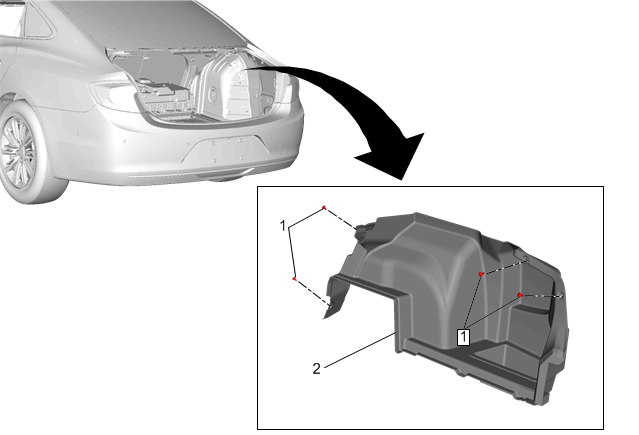

Fig 1: Rear Compartment Side Trim - Right Side (With LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove battery cover. Rear Compartment Floor Panel Trim Replacement Rear End Trim Finish Panel Replacement Fold down rear seat to access retainers.
1	Rear Compartment Side Trim Retainer Procedure Use a flat bladed plastic trim tool.
2	Rear Compartment Side Trim

Callout

Component Name

Preliminary Procedures

Rear Compartment Side Trim Retainer
Procedure
Use a flat bladed plastic trim tool.

Rear Compartment Side Trim
