Rear Bumper Fascia Replacement

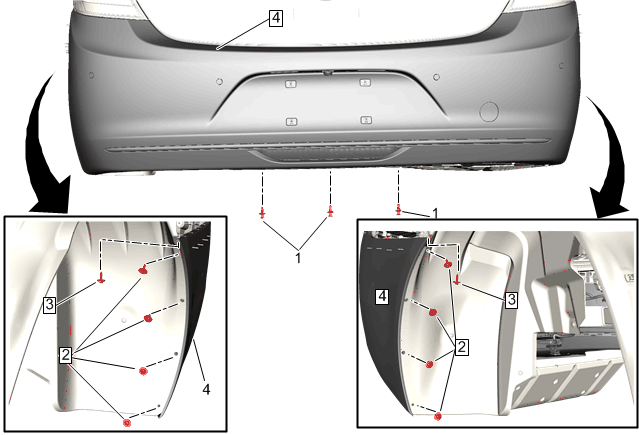

Fig 1: Rear Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lifting and Jacking the Vehicle
1	Rear Bumper Fascia Retainer
2	Rear Wheelhouse Liner Screw CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
3	Rear Bumper Fascia Scre Tighten 2.5 N.m (22 lb in)
4	Rear Bumper Fascia Procedure Rear Bumper Fascia - Remove { If equipped }Rear Parking Assist Alarm Sensor, Disconnect all electrical connectors.
