Head-Up Display Replacement

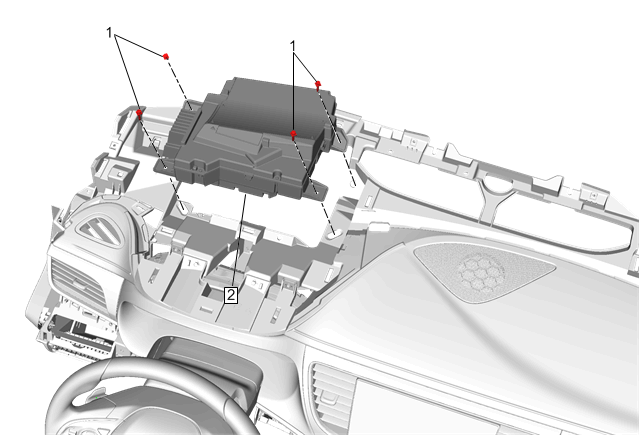

Fig 1: Head-Up Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Assembly Replacement
1	Head-Up Display Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Head-Up Display Procedure Disconnect electrical connectors.
