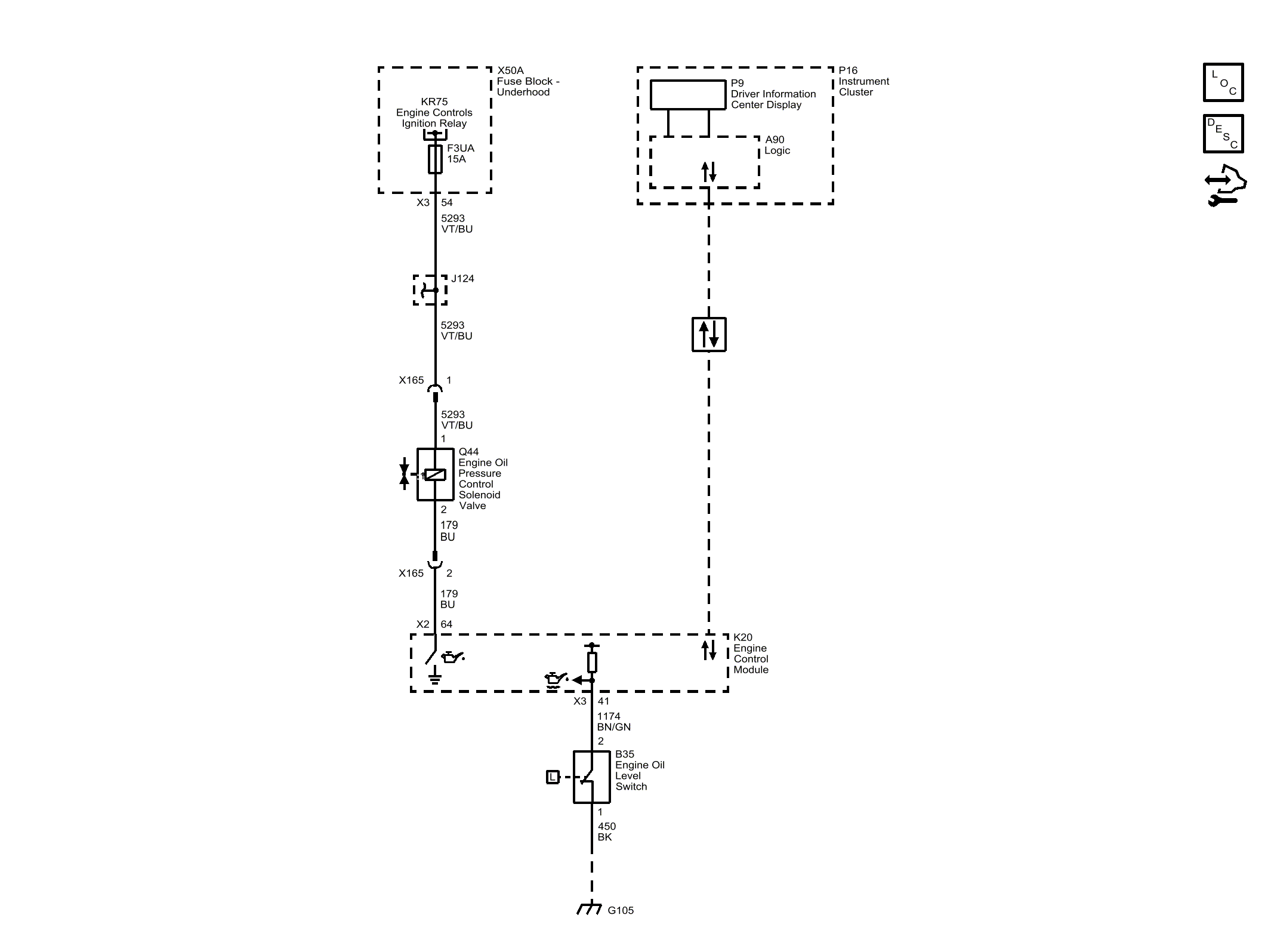

Home >> Buick >> 2017 >> Envision Premium >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Mechanical - 2.0L (LTG) Or 2.5L (LCV) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Engine Mechanical Wiring Schematics >> Oil Level Switch and Pressure Control
