Instrument Panel Outer Air Outlet Bezel Replacement (Center)

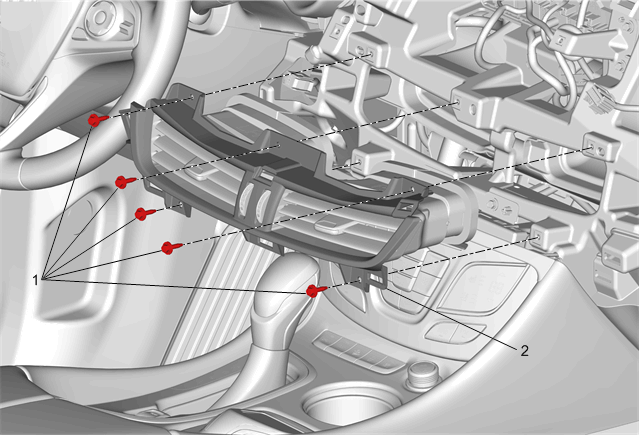

Fig 1: Instrument Panel Outer Air Outlet Bezel - Center
GM3775123Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Trim Pad Replacement
1 Instrument Panel Center Air Outlet Bolt (Qty: 5)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Outer Air Outlet Bezel
Procedure
Transfer components as necessary.
