Quarter Stowage Pocket Door Replacement (Left Side)

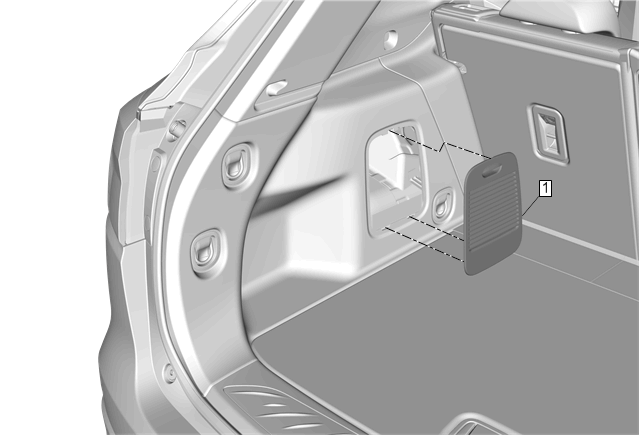

Fig 1: Quarter Stowage Pocket Door (Left Side)
GM3932366Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Quarter Stowage Pocket Door
Procedure
Use a flat-bladed trim tool to aid in the removal of the quarter stowage pocket door from the quarter lower rear trim panel left side.
