Liftgate Trim Finish Panel Pull Cup Replacement (With TB5)

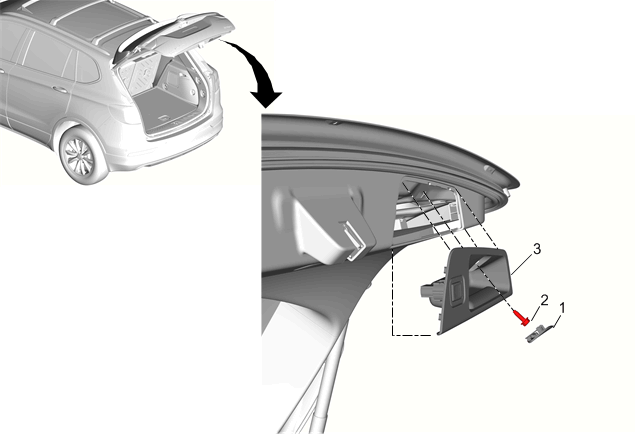

Fig 1: Liftgate Trim Finish Panel Pull Cup (With TB5)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Liftgate Pull Cup Cap
2	Liftgate Lower Trim Finish Panel Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Liftgate Trim Finish Panel Pull Cup Procedure Use a plastic trim tool to aid in the removal. Disconnect the electrical connector.

Callout

Component Name

Liftgate Pull Cup Cap

Liftgate Lower Trim Finish Panel Fastener

CAUTION:

Tighten
2.5 N.m (22 lb in)

Liftgate Trim Finish Panel Pull Cup

Procedure
