Liftgate Trim Finish Panel Pull Cup Replacement (With TB4)

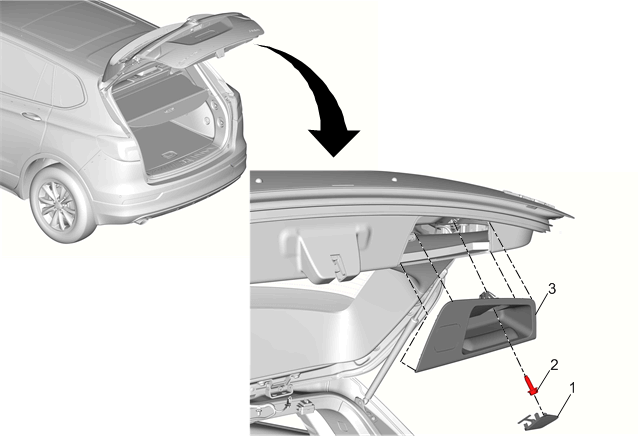

Fig 1: Liftgate Trim Finish Panel Pull Cup (With TB4)
GM3924823Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Liftgate Pull Cup Cap
2 Liftgate Lower Trim Finish Panel Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Liftgate Trim Finish Panel Pull Cup
Procedure
Use a plastic trim tool to aid in the removal.
