Instrument Panel Cluster Trim Plate Replacement

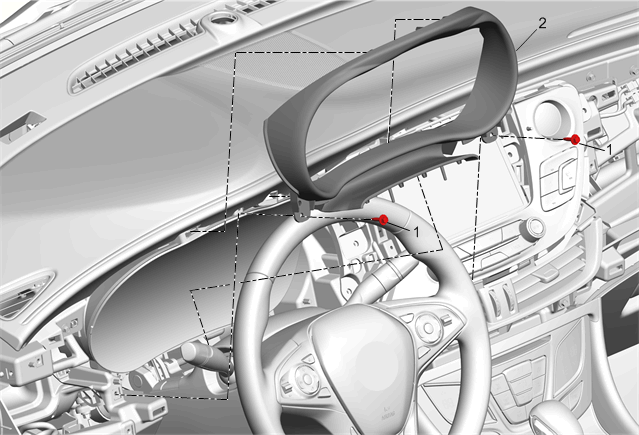

Fig 1: Instrument Panel Cluster Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Steering Column Upper Trim Cover Replacement Instrument Panel Outer Air Outlet Bezel Replacement - Left Side Instrument Panel Trim Pad Replacement
1	Instrument Panel Cluster Trim Plate Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Cluster Trim Plate Procedure Use a flat bladed plastic trim tool.

Callout

Component Name

Preliminary Procedures

Instrument Panel Cluster Trim Plate Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Cluster Trim Plate
Procedure
Use a flat bladed plastic trim tool.
