Air Temperature and Driver Information Center

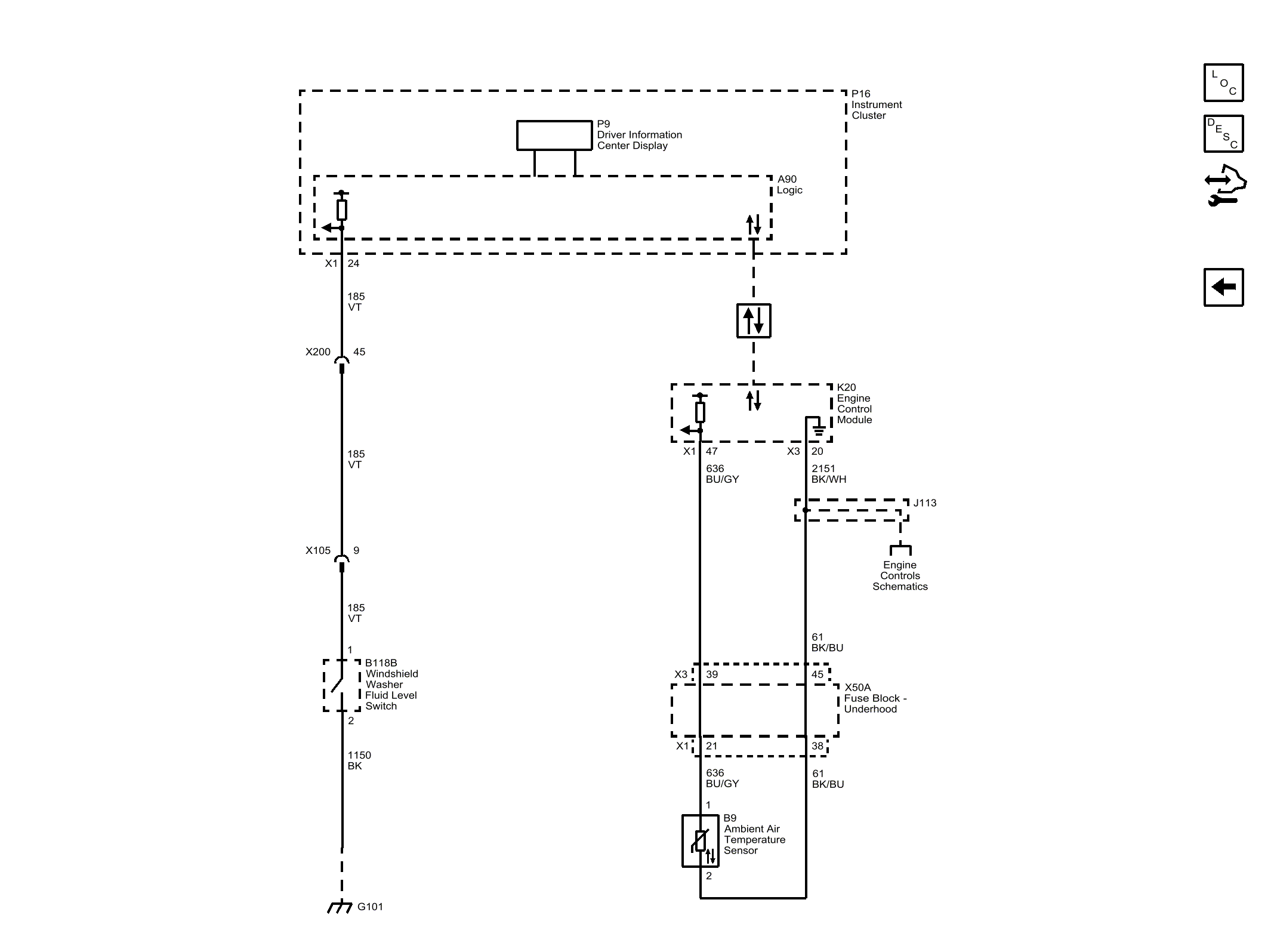

Fig 1: Air Temperature and Driver Information Center

GM4493719

Courtesy of GENERAL MOTORS COMPANY
