Intake Air Baffle Replacement (LTG)

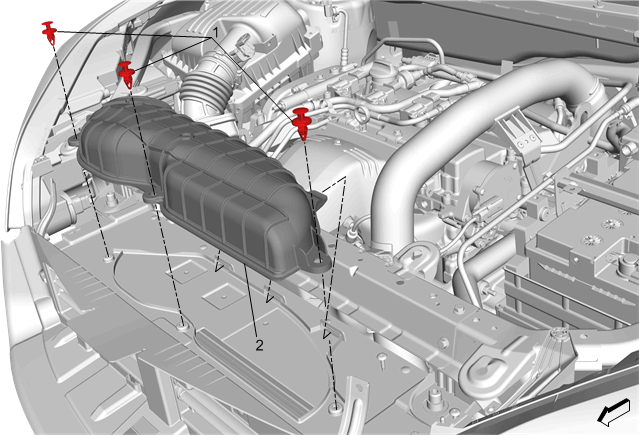

Fig 1: Intake Air Baffle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement Remove Intake Air Duct. Refer to Intake Air Duct Replacement (LTG)
1	Intake Air Baffle Retainers (Qty: 3)
2	Intake Air Baffle

Callout

Component Name

Preliminary Procedures

Intake Air Baffle Retainers (Qty: 3)

Intake Air Baffle
