Evaporative Emission Canister Solenoid Replacement

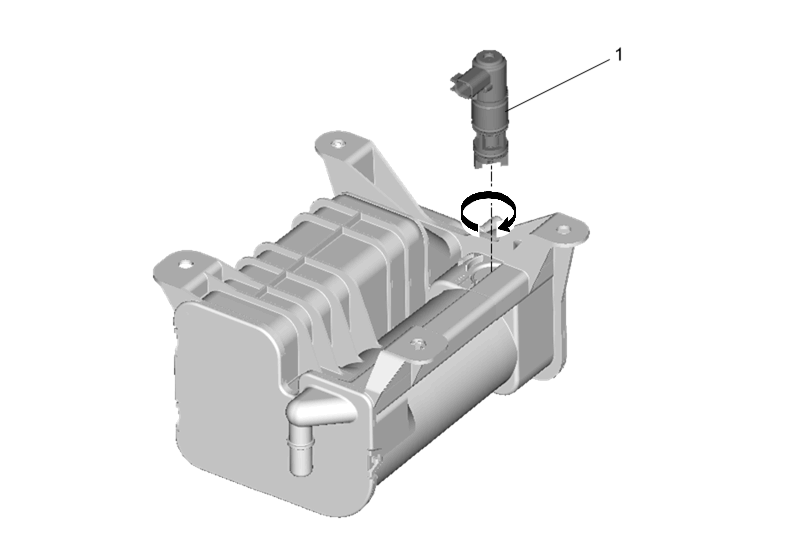

Fig 1: Evaporative Emission Canister Solenoid
GM4374673Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Evaporative Emission Canister. Refer to Evaporative Emission Canister Replacement
1 Evaporative Emission Canister Solenoid

Procedure

  1. Disconnect the electrical connector.
  2. Turn the solenoid clockwise to remove.
