Rear Bumper Fascia Replacement (Single Exhaust)

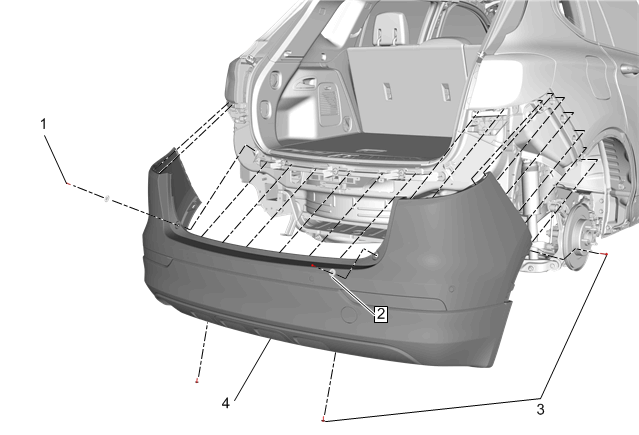

Fig 1: Rear Bumper Fascia (Single Exhaust)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Wheel Opening Molding Replacement Rear Wheelhouse Liner Replacement
1	Rear Bumper Fascia Pad Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Liftgate Adjust Bumper Pad (Qty: 2)
3	Rear Bumper Fascia Bolt (Qty: 4) Tighten 2.5 N.m (22 lb in)
4	Rear Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the rear fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia guide. Disconnect all electrical connectors. Transfer components as necessary.
