Instrument Panel Outer Air Outlet Bezel Replacement - Right Side

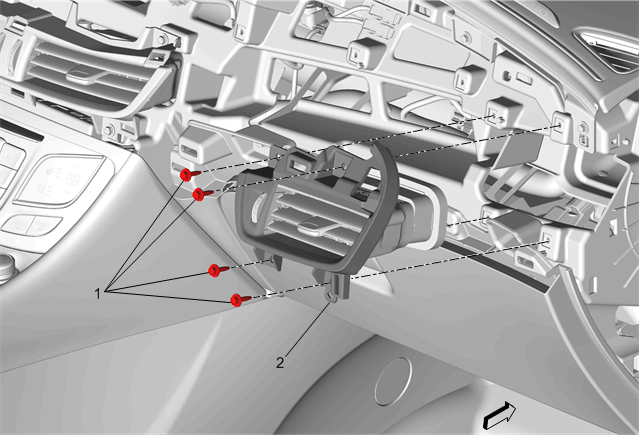

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Trim Pad Replacement |
|
| 1 | Instrument Panel Outer Air Outlet Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Outer Air Outlet Bezel - Right Side Procedure Transfer components as necessary. |
