Instrument Panel Lower Trim Panel Insulator Replacement - Right Side

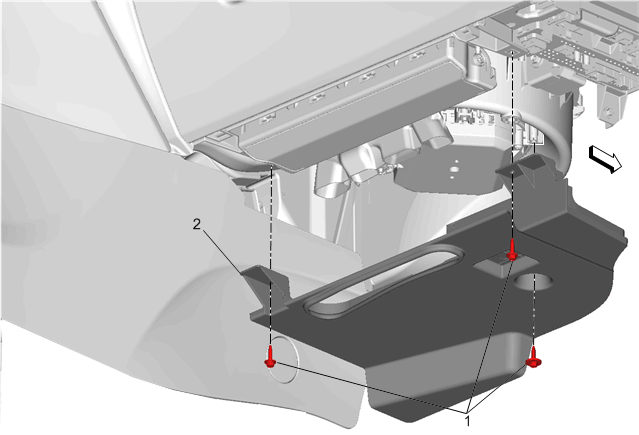

Fig 1: Instrument Panel Lower Trim Panel Insulator - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Lower Insulator Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Lower Trim Panel Insulator Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Instrument Panel Lower Insulator Bolt (Qty: 3)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Lower Trim Panel Insulator

Procedure
