Instrument Panel Extension Replacement (UEU)

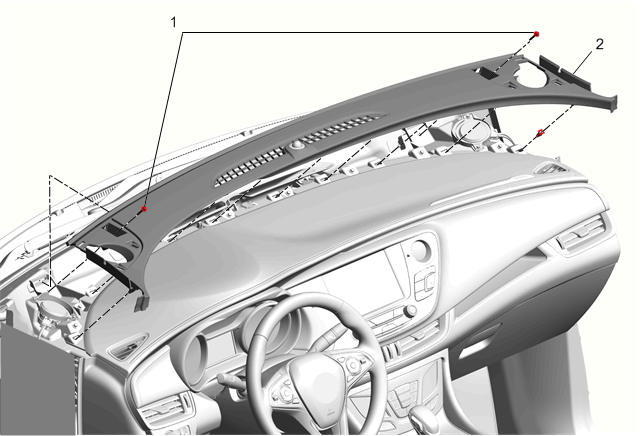

Fig 1: Instrument Panel Extension (UEU)
GM3762650Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Radio Front Speaker Grille Replacement
  2. Windshield Garnish Molding Replacement
1 Instrument Panel Extension Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Extension

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Disconnect the electrical connectors.
  3. Transfer components as necessary.
