Evaporative Emission Canister Replacement

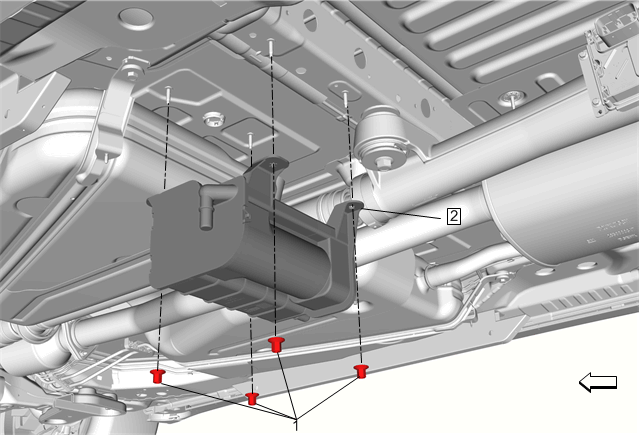

Fig 1: Evaporative Emission Canister

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Underbody Rear Air Deflector - Left Side. Refer to Underbody Rear Air Deflector Replacement - Left Side Disconnect the evaporative emission canister pipes. Refer to Plastic Collar Quick Connect Fitting Service .
1	Evaporative Emission Canister Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Evaporative Emission Canister

Callout

Component Name

Preliminary Procedures

Remove Underbody Rear Air Deflector - Left Side. Refer to Underbody Rear Air Deflector Replacement - Left Side
Disconnect the evaporative emission canister pipes. Refer to Plastic Collar Quick Connect Fitting Service .

Evaporative Emission Canister Fastener (Qty: 4)

CAUTION:

Tighten
9 N.m (80 lb in)

Evaporative Emission Canister
