Evaporative Emission Canister Purge Solenoid Valve Replacement (LCV)

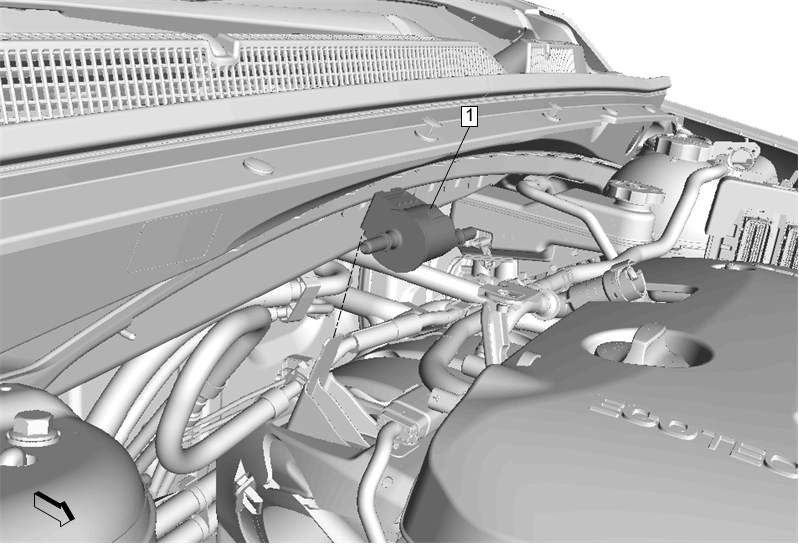

Fig 1: Evaporative Emission Canister Purge Solenoid Valve
GM4354230Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

  1. Remove Air Cleaner Outlet Resonator. Refer to Air Cleaner Outlet Resonator Replacement (LCV)
  2. Disconnect Evaporative Emission Pipe @ Evaporative Emission Canister Purge Solenoid Valve. Refer to Plastic Collar Quick Connect Fitting Service
  3. Disconnect the electrical connector.
1 Evaporative Emission Canister Purge Solenoid Valve
