Radiator Air Baffle Replacement (Upper Outer)
Radiator Air Baffle Replacement (Upper Outer)

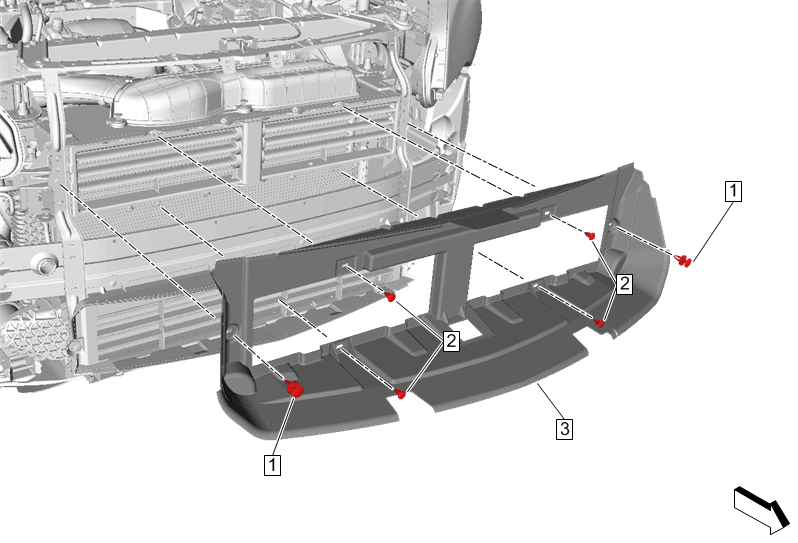

Fig 1: Radiator Air Baffle (Upper Outer)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Front Bumper Fascia Replacement
Forward Range Radar Module Replacement
1
Push Pin (Qty: 2)
2
Radiator Air Baffle Retainer (Qty: 4)
3
Radiator Air Baffle
