Radiator Air Baffle Replacement (Lower Outer with LTG)

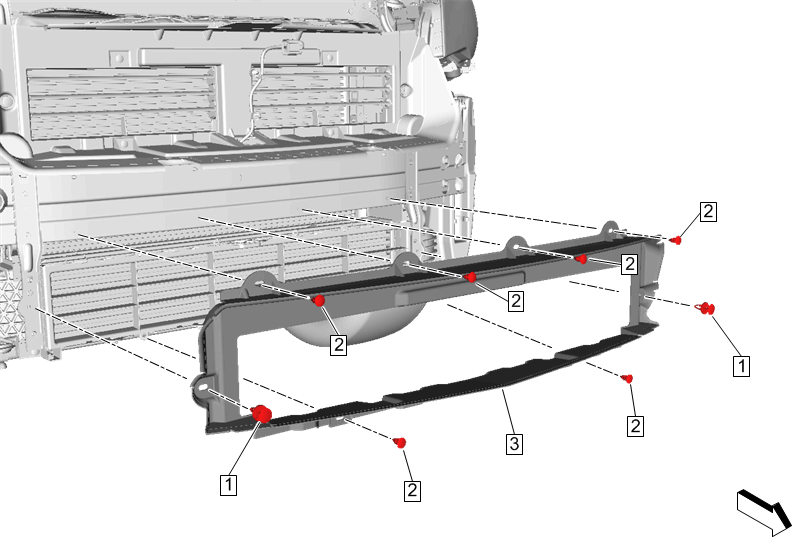

Fig 1: Radiator Air Baffle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Replacement
1	Push Pin (Qty: 2)
2	Radiator Air Baffle Retainer (Qty: 6)
3	Radiator Air Baffle
