Throttle Body Assembly Replacement (LCV)

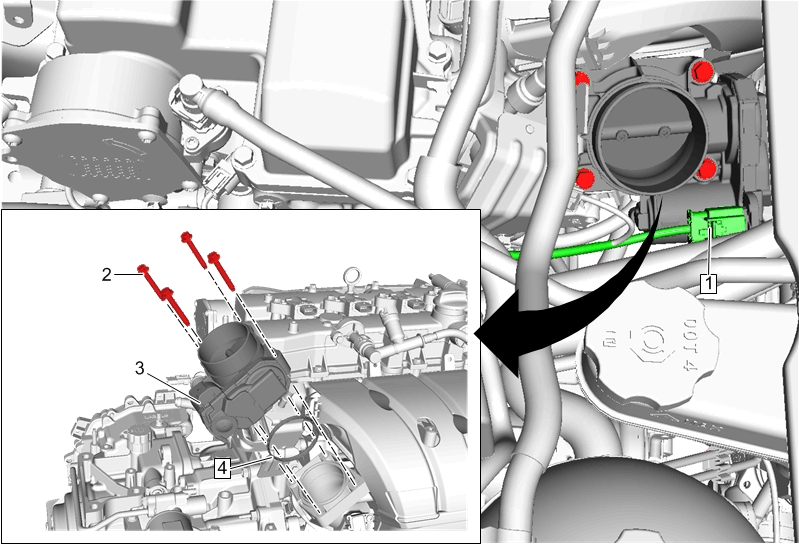

| Callout | Component Name |
|---|---|
|
CAUTION:
Do not use solvent of any type when cleaning the gasket surfaces on the intake manifold and the throttle body assembly, as damage to the gasket surfaces and throttle body assembly may result. Use care in cleaning the gasket surfaces on the intake manifold and the throttle body assembly, as sharp tools may damage the gasket surfaces.
CAUTION:
Do not use any solvent that contains Methyl Ethyl Ketone (MEK). This solvent may damage fuel system components.
NOTE:
Preliminary Procedure Remove Air Cleaner Outlet Resonator. Refer to Air Cleaner Outlet Resonator Replacement (LCV) Do NOT prop open the throttle blade with the ignition key in the ON position as it MAY set a diagnostic trouble code (DTC). |
|
| 1 | Electrical Connector |
| 2 | Throttle Body Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Throttle Body Procedure Perform the throttle body idle air flow compensation reset. Refer to Throttle Body Idle Air Flow Compensation Reset |
| 4 | Throttle Body Seal Procedure The seal is reusable, inspect the seal and replace if damaged. |
