Intake Air Pressure and Temperature Sensor Replacement (LTG)

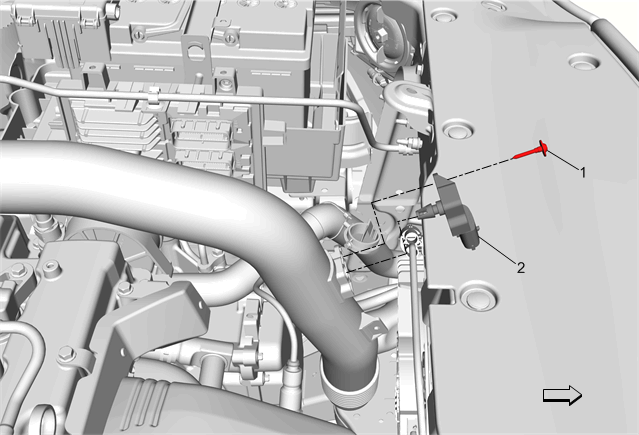

Fig 1: Intake Air Pressure and Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Intake Air Pressure and Temperature Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Intake Air Pressure and Temperature Sensor Procedure  Disconnect the electrical wiring harness connector from the intake air pressure and temperature sensor.
