Fuel Tank Vent Pipe Replacement (Front Pipe to EVAP Canister)

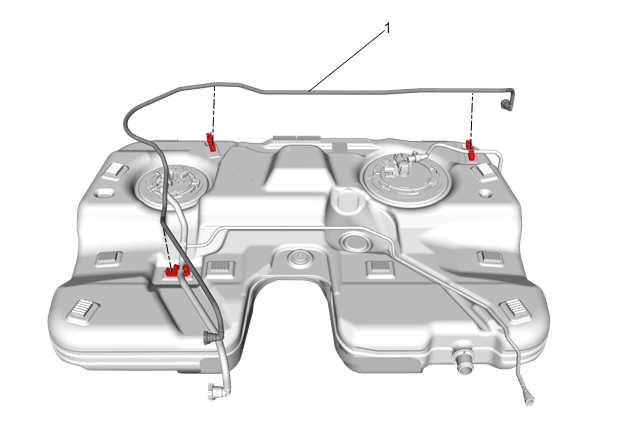

Fig 1: Fuel Tank Vent Pipe (Front Pipe to EVAP Canister)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove Fuel Tank. Refer to Fuel Tank Replacement
1	Fuel Tank Vent Pipe Procedure  Disconnect the quick disconnects and remove from retainers. Refer to Plastic Collar Quick Connect Fitting Service .
