Fuel Tank Skid Rail Replacement (Left Side)

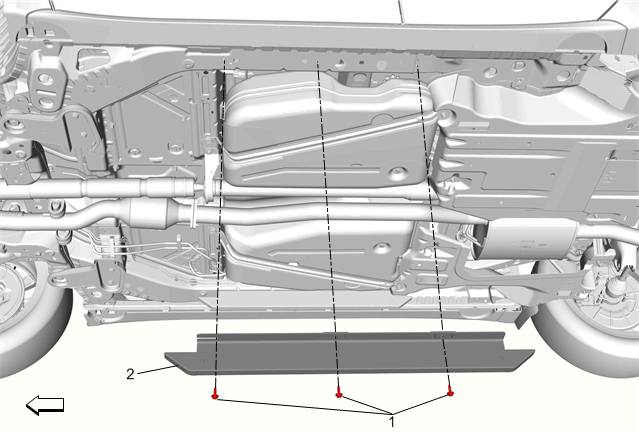

Fig 1: Fuel Tank Skid Rail (Left Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Fuel Tank Skid Rail Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Fuel Tank Skid Rail
