Fuel Feed Hose Clip Bracket Replacement

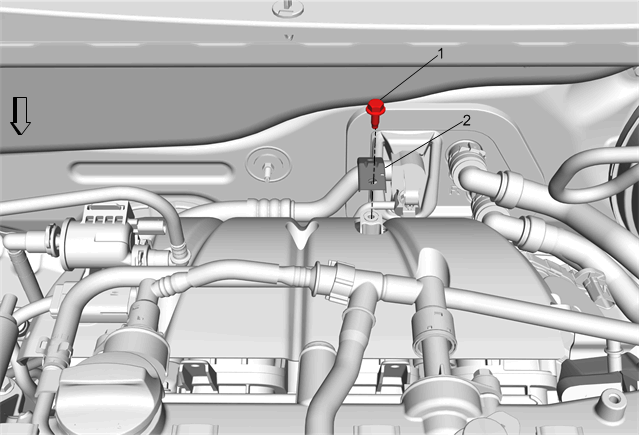

Fig 1: Fuel Feed Hose Clip Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the fuel feed pipe engine. Refer to Fuel Feed Pipe Replacement (Engine LTG) Fuel Feed Pipe Replacement (Engine LCV) .
1	Fuel Feed Hose Clip Bracket Fastener CAUTION: Refer to Fastener Caution Tighten  9 N.m (80 lb in)
2	Fuel Feed Hose Clip Bracket
