Air Cleaner Outlet Resonator Bracket Replacement (LCV)

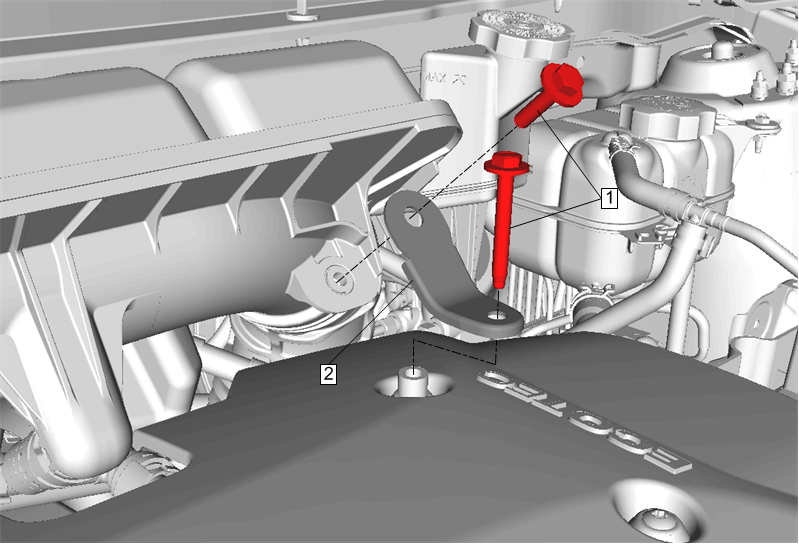

Fig 1: Air Cleaner Outlet Resonator Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Cleaner Resonator Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Air Cleaner Outlet Resonator Bracket
