Air Cleaner Element Replacement (LTG)

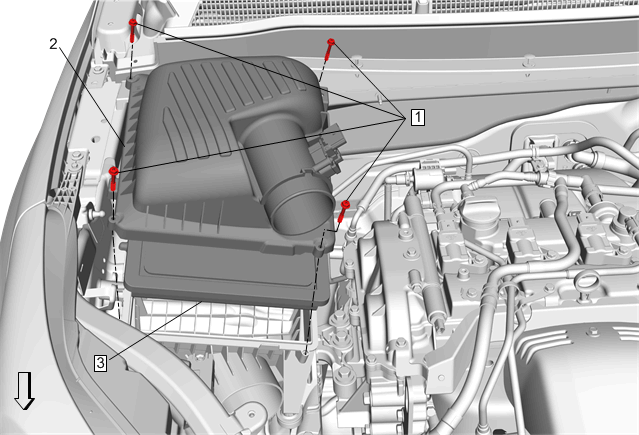

Fig 1: Air Cleaner Element
GM3924848Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LTG) .
  2. Disconnect the mass airflow sensor electrical connector.
1 Air Cleaner Housing Fasteners (Qty: 4)
CAUTION:

Refer to Fastener Caution .
2 Air Cleaner Housing
3 Air Cleaner Element
