Front Side Door Wiring Harness Replacement

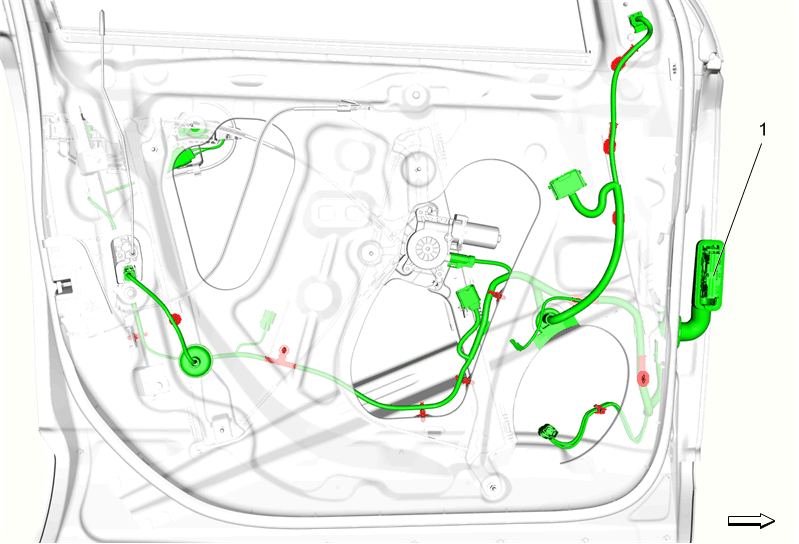

Fig 1: Front Side Door Wiring Harness
GM4518763Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
  1. Radio Front Side Door Speaker Replacement
  2. Front Side Door Water Deflector Replacement
1 Front Side Door Wiring Harness
Procedure
Disconnect all electrical connectors.
