Steering Column Lower Trim Cover Replacement (N38)

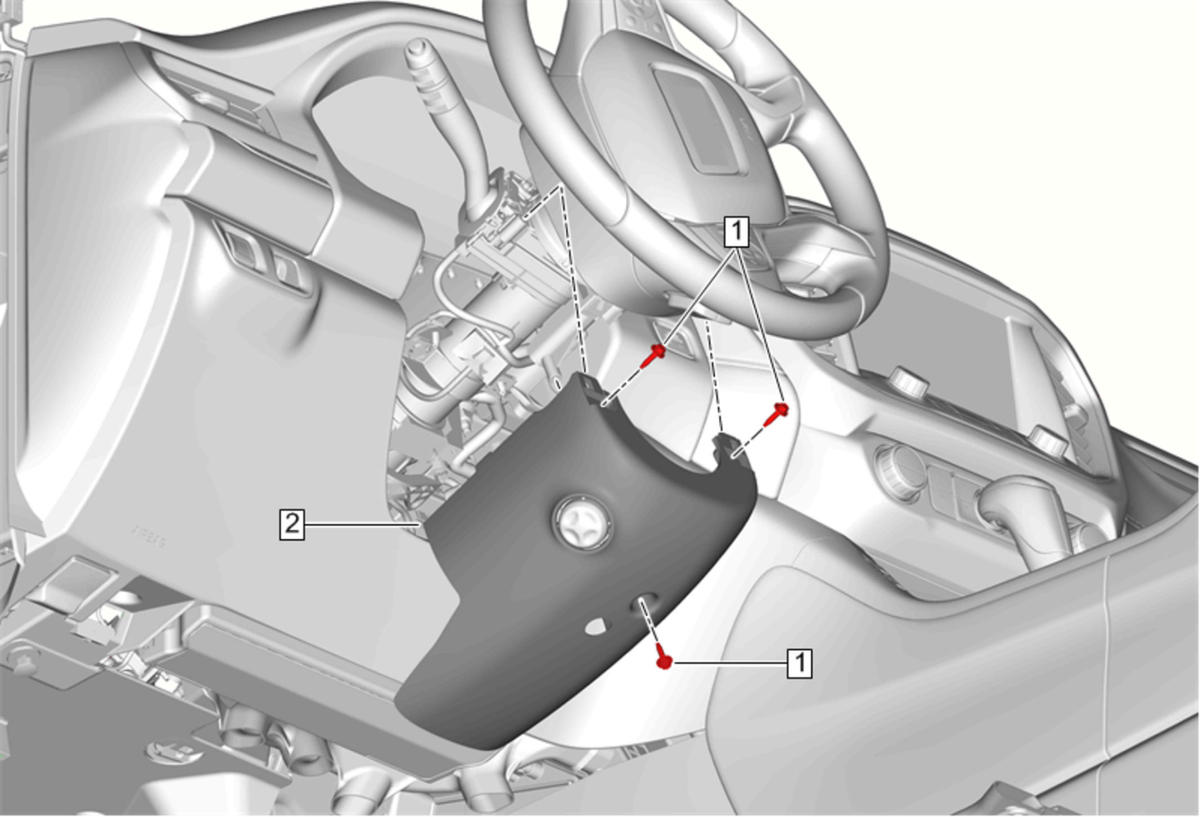

Fig 1: Steering Column Lower Trim Cover (RPO N38)
GM4399857Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Steering Column Upper Trim Cover Replacement
1 Steering Column Lower Trim Cover Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Steering Column Lower Trim Cover

Procedure

  1. Extended the steering column to its furthest point to clear the instrument panel knee bolster.
  2. Turn the steering wheel left and right to access the fasteners securing the lower trim cover to the turn signal switch bracket.
  3. Disconnect the electrical connectors.
  4. Transfer components as necessary.
