X175 Transmission Harness to Transmission Harness

WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

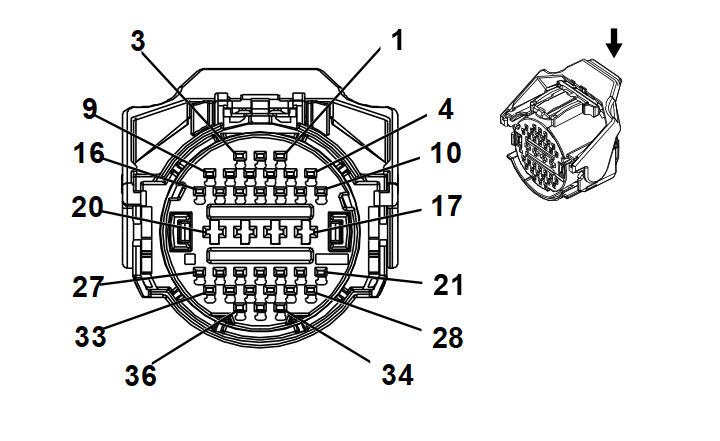

GM3621473

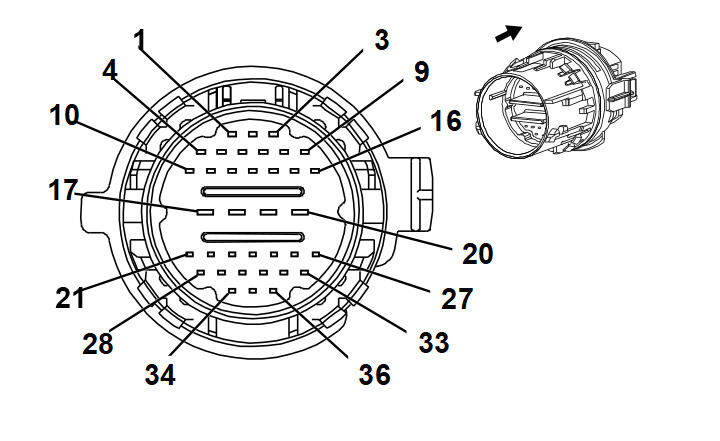

GM3977661
Connector Part Information
  • Harness Type: Transmission
  • OEM Connector: 2138314-5
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 36-Way F 1.2 MCON-CB, 2.8 MCP Series, Sealed (BK)
 Connector Part Information
  • Harness Type: Transmission
  • OEM Connector: 2138338-5
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 36-Way M 1.2 MCON, 2.8 MQP Series (NA)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-16 (LT GN) No Tool Required Not Required Not Required Not Required Not Required
II Not Required J-35616-35 (VT) No Tool Required Not Required Not Required Not Required Not Required
III Not Required No Tool Required No Tool Required Not Required Not Required Not Required Not Required
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.5 GN/WH 6380 I - TCC On/Off Solenoid A Control 1 0.5 GN/WH 6380 III -
2 - - - - - Not Occupied 2 - - - - -
3 0.5 YE/BN 6404 I - Clutch E Control 3 0.5 YE/BN 6404 III -
4 0.5 GY/GN 6403 I - Clutch D Control 4 0.5 GY/GN 6403 III -
5 0.5 BN 6400 I - Clutch A Control 5 0.5 BN 6400 III -
6 0.5 BU 6401 I - Clutch B Control 6 0.5 BU 6401 III -
7 0.5 YE/BN 6210 I - TCC On/Off Solenoid B Control 7 0.5 YE/BN 6210 III -
8 - 9 - - - - - Not Occupied 8 - 9 - - - - -
10 0.5 GY 6402 I - Clutch C Control 10 0.5 GY 6402 III -
11 0.5 BK/BN 586 I - Transmission Oil Temperature Sensor Low Reference 11 0.5 BK/BN 586 III -
12 0.5 BN/WH 585 I - Transmission Oil Temperature Sensor Signal 12 0.5 BN/WH 585 III -
13 0.5 WH 4508 I - Transmission Clutch G Control 13 0.5 WH 4508 III -
14 0.5 WH/BU 4507 I - Transmission Clutch H Control 14 0.5 WH/BU 4507 III -
15 - 17 - - - - - Not Occupied 15 - 17 - - - - -
18 0.75 GN/GY 6387 II - Transmission High Side Driver 1 Signal Driver 18 0.75 GN/GY 6387 III -
19 0.75 GY/BN 6388 II - Transmission High Side Driver 2 Signal 19 0.75 GY/BN 6388 III -
20 - - - - - Not Occupied 20 - - - - -
21 0.5 WH/BK 5983 I - PRNDL C Signal 21 0.5 WH/BK 5983 III -
22 0.5 VT/WH 5981 I - PRNDL A Signal 22 0.5 VT/WH 5981 III -
23 0.5 GY/WH 4168 I - PRNDL P Signal 23 0.5 GY/WH 4168 III -
24 0.5 GY/BU 6358 I - Output Speed Signal 24 0.5 GY/BU 6358 III -
25 0.5 YE/GN 4170 I - Transmission Position Sensor B 9V Reference 25 0.5 YE/GN 4170 III -
26 0.5 GN/YE 6353 I - Input Speed Signal 26 0.5 GN/YE 6353 III -
27 0.5 YE/BU 4171 I - Transmission Position Sensor A 9V Reference 27 0.5 YE/BU 4171 III -
28 0.5 GY/BN 5982 I - PRNDL B Signal 28 0.5 GY/BN 5982 III -
29 0.5 YE/BU 4171 I - Transmission Position Sensor A 9V Reference 29 0.5 YE/BU 4171 III -
30 0.5 BK/GY 3927 I - IMS Mode Switch Low Reference 30 0.5 BK/GY 3927 III -
31 0.5 YE/GN 4170 I - Transmission Position Sensor B 9V Reference 31 0.5 YE/GN 4170 III -
32 0.5 GN/VT 4510 I - Transmission Intermediate Speed Signal 32 0.5 GN/VT 4510 III -
33 - - - - - Not Occupied 33 - - - - -
34 0.5 GY/YE 4169 I - PRNDL S Signal 34 0.5 GY/YE 4169 III -
35 0.5 WH/GY 1786 I - Transmission Park/Neutral Signal 1 35 0.5 WH/GY 1786 III -
36 - - - - - Not Occupied 36 - - - - -
