E17D Outside Rearview Mirror Glass - Driver (VPH)
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

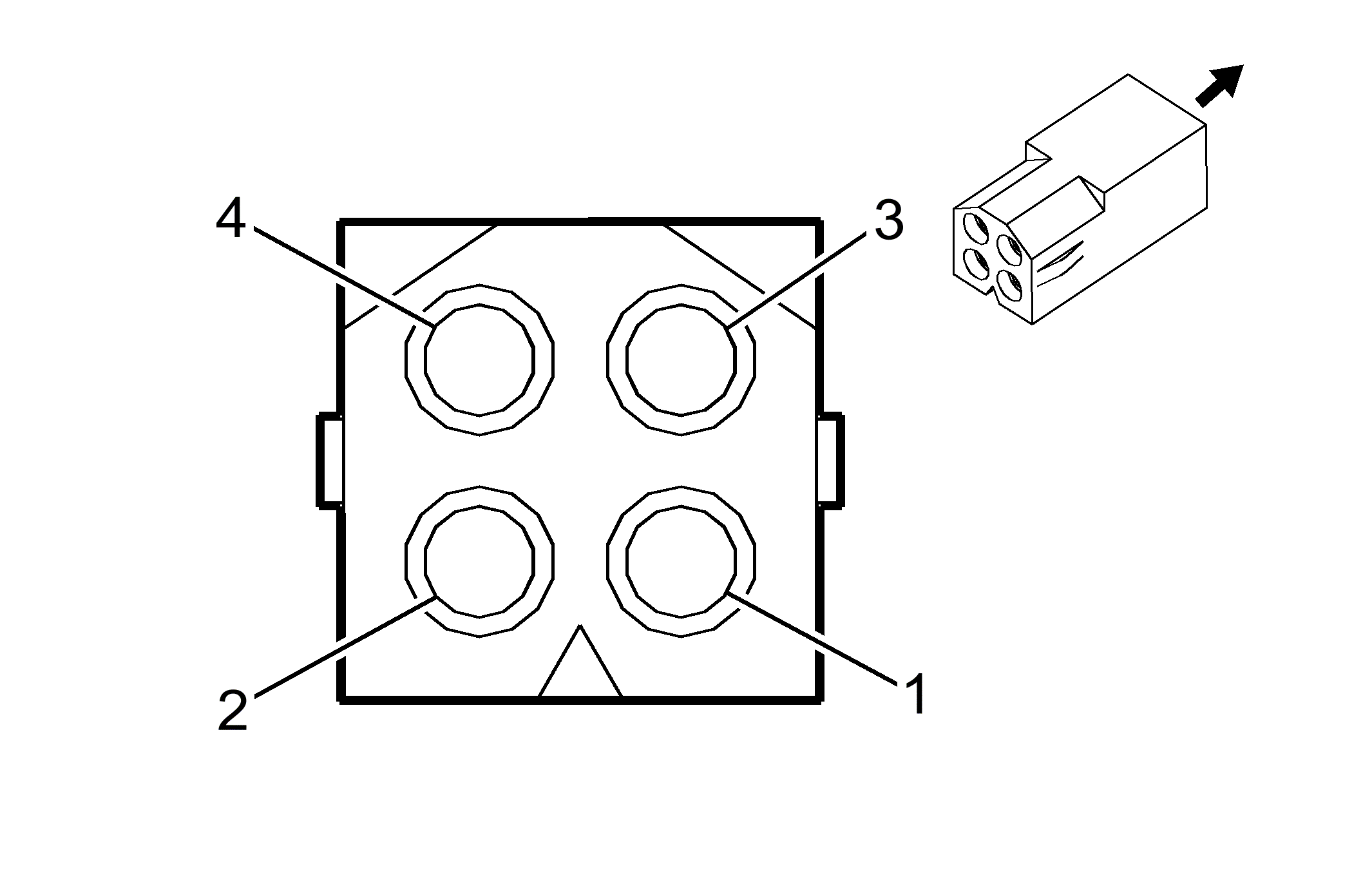

Connector Part Information
- Harness Type: Outside Rearview Mirror - Driver
- OEM Connector: 03-06-1044
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 2004 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.32 |
BN |
1690 |
Automatic Day/Night Mirror Signal |
I |
- |
| 2 |
0.32 |
BN/BK |
1691 |
Automatic Day/Night Mirror Low Reference |
I |
- |
| 3 |
0.32 |
BK/WH |
1150 |
Ground |
I |
- |
| 4 |
0.32 |
BK |
2267 |
Mirror Heating Element Supply Voltage |
I |
- |
