M23 Folding Top Pump Motor X1 (CM8)
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

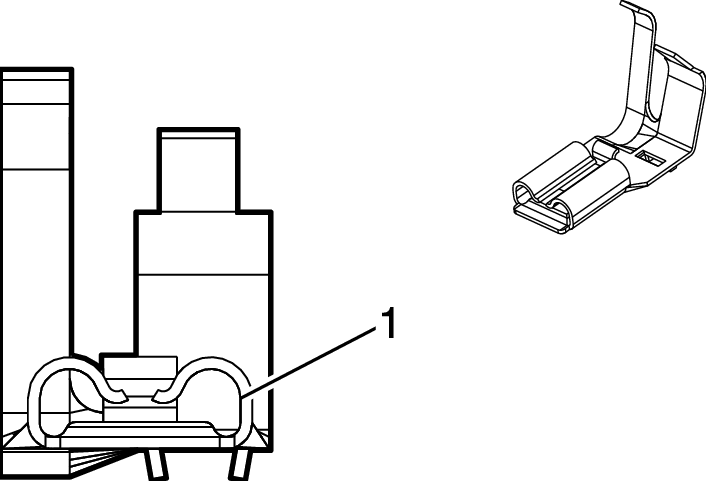

Connector Part Information
- Harness Type: Folding Top Pump Motor
- OEM Connector: 175178-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 1-Way F 250 Positive Lock Series
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
RD/RD |
7088 |
Roof Door Module Pass Door Window Regulator Signal |
I |
- |
