B27D Door Handle Switch - Driver Exterior
WARNING: This page is about a different car, the 2017 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
|
|

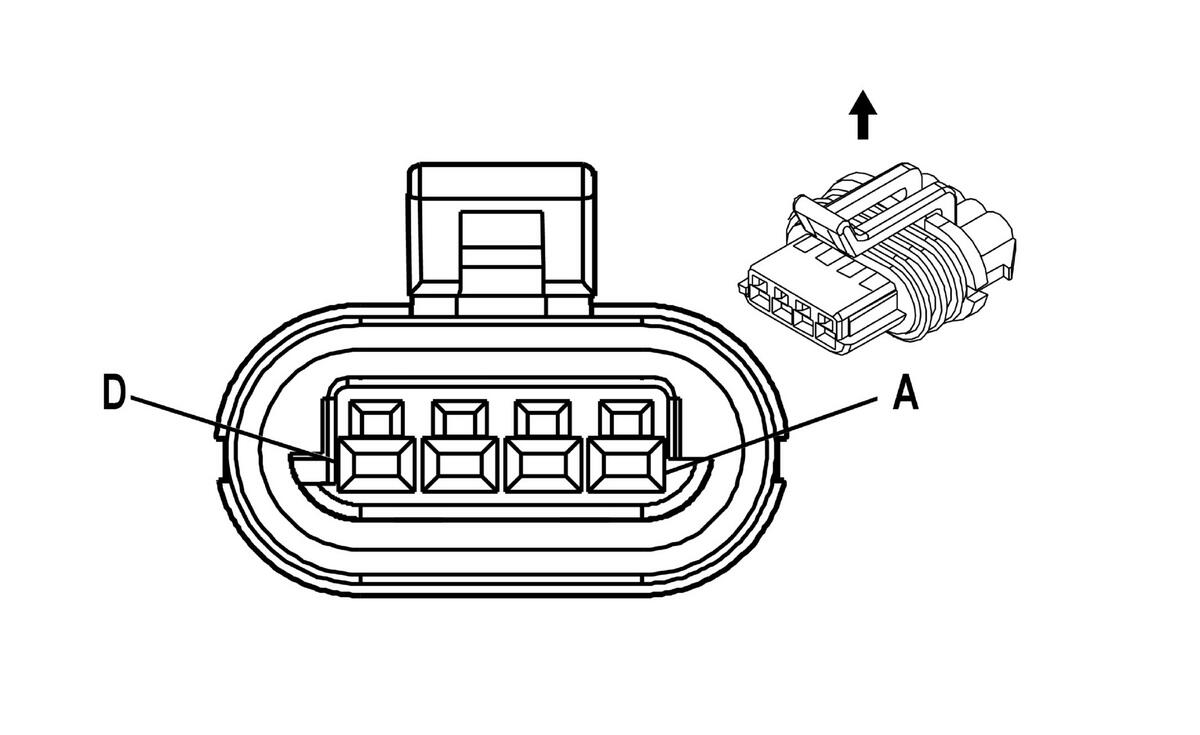

Connector Part Information
- Harness Type: Driver Door
- OEM Connector: 15336846
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 150 GT Series, Sealed (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
GN/WH |
3570 |
Driver Door Handle Switch Signal |
I |
- |
| B |
- |
- |
- |
Not Occupied |
- |
- |
| C |
0.5 |
BK |
1150 |
Ground |
I |
- |
| D |
- |
- |
- |
Not Occupied |
- |
- |
